Ultra-Fine 0.03mm x 4000 Strands Natural Silk Covered Litz Wire
Premium choice for high-fidelity audio applications where conductor quality affects frequency response, transient speed, and harmonic integrity. Our specialized Litz wire is designed for audio enthusiasts, sound engineers, and high-end audio equipment manufacturers.
Superior Performance in Voice Coils and Speaker Drivers
The multi-strand Litz design ensures all frequencies encounter consistent resistance, yielding a flatter impedance curve and less phase shift. The 0.03mm ultra-fine strands provide extraordinary transient response, enabling voice coils to start and stop instantly for percussive attacks and vocal sibilance with breathtaking clarity.
Beyond Voice Coils - Interconnects and Headphone Cables
Ideal as a signal conductor in analog audio interconnects and headphone cables. Low capacitance maintains high-frequency extension while silk insulation reduces triboelectric noise. Litz construction minimizes eddy currents that can smear imaging and reduce soundstage depth.
Customization Options
- Single conductor diameter: 0.025mm to 0.5mm
- Thermal ratings: 155°C (Class F), 180°C (Class H), or 220°C (Class C)
- Strand count: 1 to 12,700 strands
- Silk tension and twist pitch modulation for specific mechanical and electrical properties
Technical Specifications
| Parameter |
Technical Requirement |
Sample Measurement |
| Single Wire Diameter (mm) |
0.038-0.046 |
0.040 |
| Conductor (mm) |
0.03±0.003 |
0.031 |
| Outer Diameter (mm) |
≤3.43 |
3.13 |
| Resistance (Ω/km) |
≤7.43 |
6.616 |
| Dielectric Strength (kV) |
≥0.2 |
2.8 |
| Pitch (mm) |
50±2 |
50 |
| Number of Strands |
4000 |
4000 |
Applications
Ideal for high-frequency transformers, medical equipment, aerospace applications, precision sensors, and audio products where signal integrity and flexibility are critical. Also suitable for power modules in consumer, automotive, and industrial power supplies requiring excellent heat dissipation.

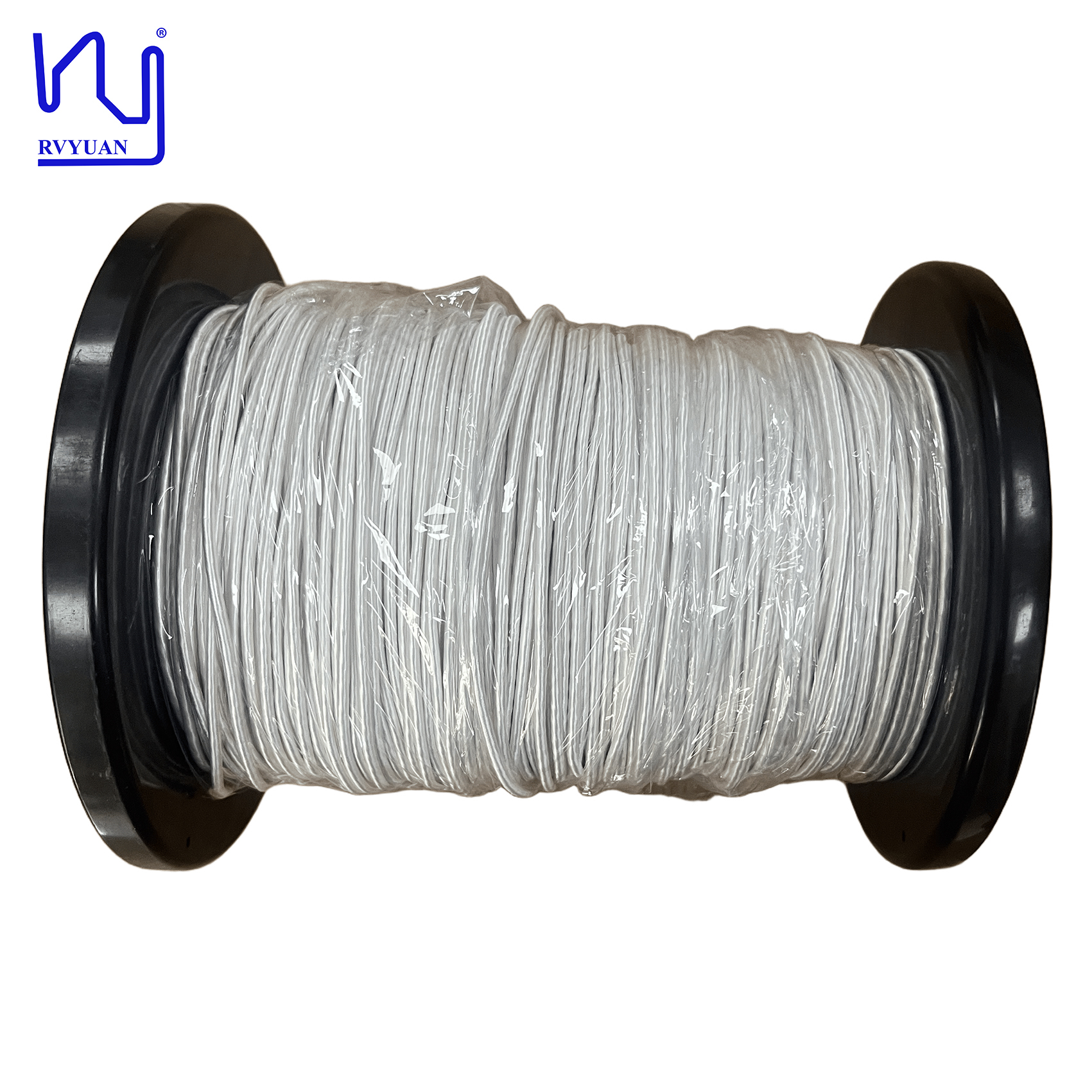

Product Image
