| 直径: | 0.05mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 4875 | 耐電圧: | 最小500 |
| カバー材質: | ナイロン | キーワード: | 0.05mmx4875 変圧器用長方形銅シルク被覆リッツ線 |
| ハイライト: | rectangular copper litz wire,silk covered litz wire,transformer litz wire |
||

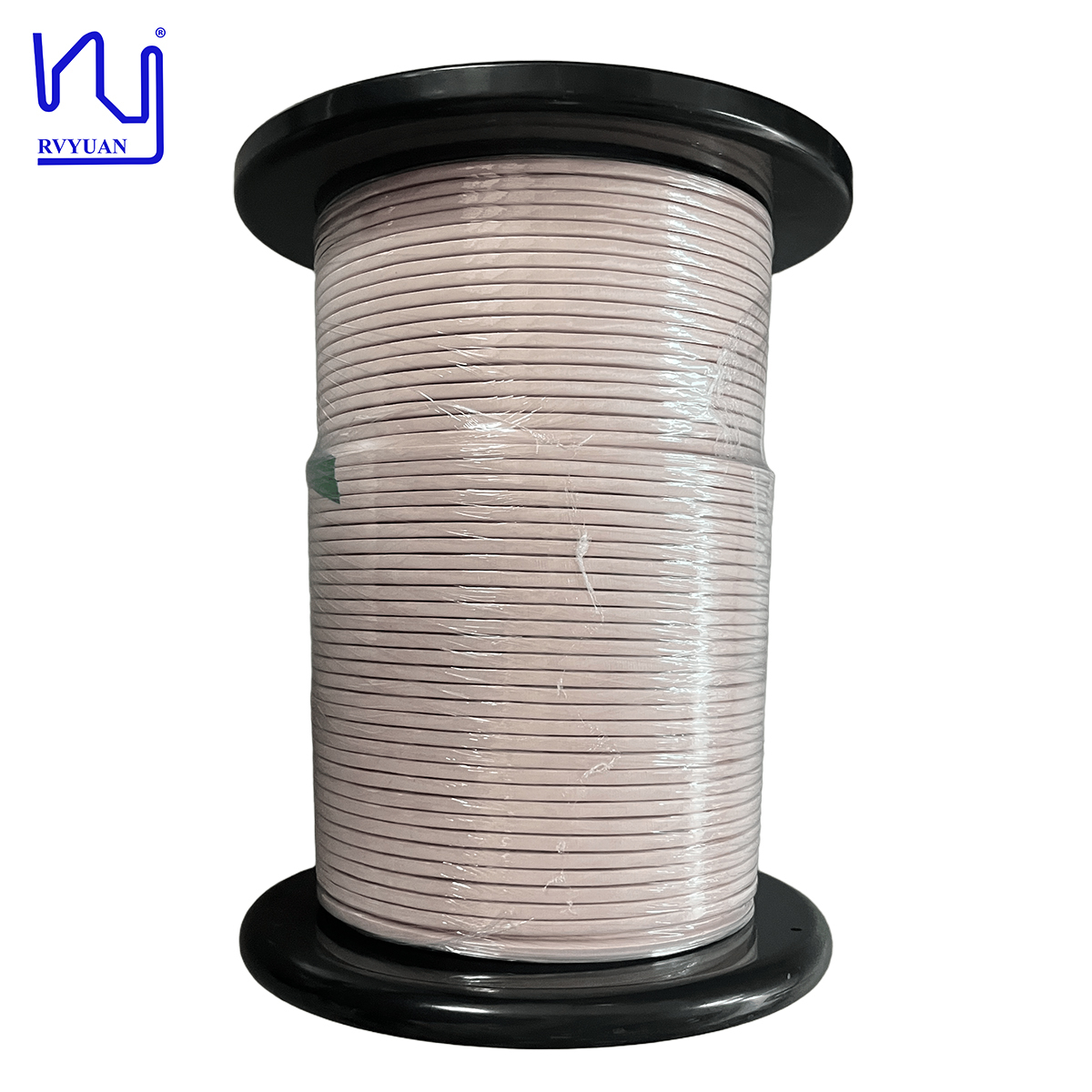

This flat nylon serving litz wire is specifically designed for use in transformer windings. It is ideal for high-frequency transformers used in power electronics, such as those found in electric vehicle chargers, renewable energy systems, and switching power supplies. By reducing AC losses and enhancing thermal performance, this wire contributes to higher efficiency, reliability, and compactness in advanced transformer designs.
| Type Conductor diameter*Strand number | 2USTC-H 0.05*4875(4.5*4.4) |
|---|---|
| Single wire (strand) conductor diameter (mm) | 0.050±0.003 |
| Overall diameter (mm) | 0.055-0.069 |
| Thermal Class (°C) | 180 |
| Strands number | First time | 39 |
|---|---|---|
| Second time | 39×5 | |
| Third time | 39×5×5 | |
| Fourth time | 39×5×5×5 |
| Pitch (mm) | First time | 16±8 |
|---|---|---|
| Second time | 25±10 | |
| Third time | 35±10 | |
| Fourth time | 65±10 | |
| Bunching direction | S/S/S/S | |
| Material type | Nylon |
|---|---|
| Material specs (mm×mm or D) | / |
| Times of Wrapping | 1 |
| Overlap (%) or thickness (mm), mini | 0.045 |
| Wrapping direction | Z |
| Width (mm) | 4.5±0.2 |
|---|---|
| Thickness (mm) | 4.4±0.2 |
| Max resistance (Ω/Km at 20°C) | 2.227 |
| Breakdown voltage Mini (V) | 500 |
