| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 20kg |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン付きスプール |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T/ペイパル |
| 供給の能力: | ご要望にお応えします |
| 直径: | 0.05mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 4875 | 耐電圧: | 最小500 |
| カバー材質: | ナイロン | キーワード: | 0.05mmx4875 変圧器用長方形銅シルク被覆リッツ線 |
| ハイライト: | rectangular copper litz wire,silk covered litz wire,transformer litz wire |
||

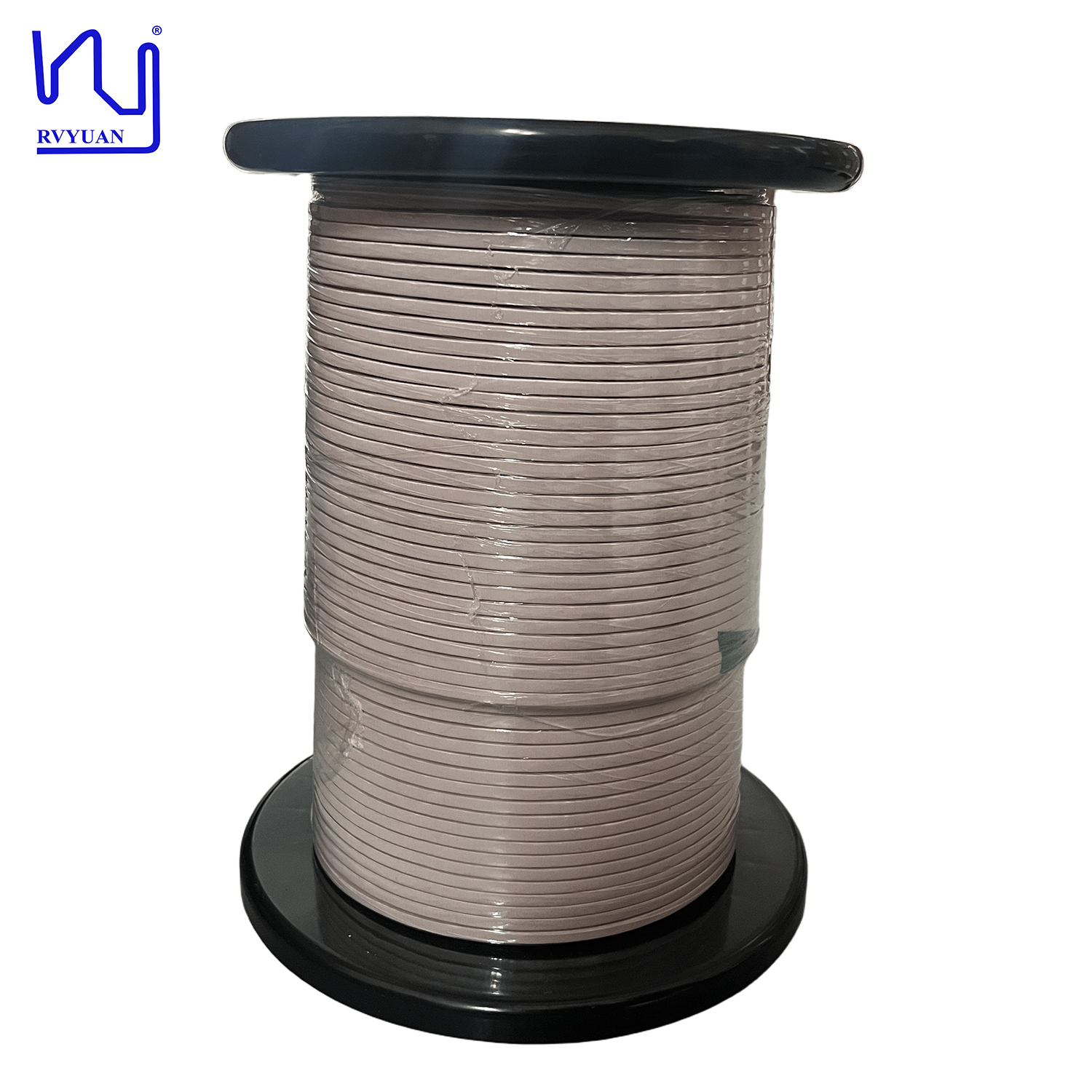

0.05mmx4875 Rectangular Copper Silk Covered Litz Wire For Transformer Compared to round nylon serving litz wire, the flat version offers distinct advantages. While round litz wire is commonly used for general winding applications, the flat configuration maximizes copper fill within a given winding window. Its rectangular shape allows for higher packing density, resulting in reduced winding losses and improved thermal management. This makes flat litz wire particularly suitable for applications where space is limited but high current-carrying capacity is required.0.05mmx4875 Rectangular Copper Silk Covered Litz Wire For Transformer
Product Overview
Technical Specifications
Type Conductor diameter*Strand number
2USTC-H 0.05*4875(4.5*4.4)
Single wire (strand)
Conductor diameter (mm): 0.050±0.003
Overall diameter (mm): 0.055-0.069
Thermal Class (°C): 180
Strands construction
Strands number:
First time: 39
Second time: 39*5
Third time: 39*5*5
Fourth time: 39*5*5*5
Pitch (mm)
First time: 16±8
Second time: 25±10
Third time: 35±10
Fourth time: 65±10
Bunching direction
S/S/S/S
Insulation layer
Material type: Nylon
Material specs (mm*mm or D): /
Times of Wrapping: 1
Overlap (%) or thickness (mm), mini: 0.045
Wrapping direction: Z
Characteristics
Width (mm): 4.5±0.2
Thickness (mm): 4.4±0.2
Max resistance (Ω/Km at 20°C): 2.227
Breakdown voltage Mini (V): 500
All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
