| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートン付きスプール |
| 受渡し時間: | 2～15営業日 |
| 支払条件: | T/T/ペイパル |
| 供給の能力: | ご要望にお応えします |
| 直径: | 0.071mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 1075 | 耐圧: | Min.950 |

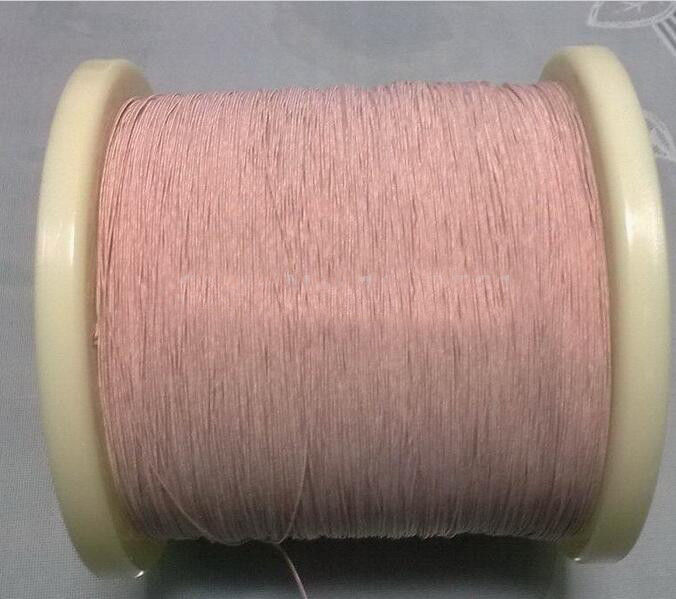

| カバー素材: | ナイロン | 製品名: | 変圧器用の絹で覆われたリッツ ワイヤー 0.071 ナイロンの撚り線 |
| キーワード: | 変圧器用の絹で覆われたリッツ ワイヤー 0.071 ナイロンの撚り線 | ||
| ハイライト: | Silk covered Litz wire for transformer,0.071 nylon serving stranded wire,USTC Litz wire with nylon serving |
||
Silk Covered Litz Wire is gaining popularity in the booming field of wireless charging for electric vehicles. As the automotive industry transitions to electrification, the demand for efficient power supply solutions is unprecedented. The silk covered Litz wire design minimizes skin and proximity effect losses, making it ideal for high-frequency applications in wireless charging systems.
| Item No. | Outer Diameter of Single Wire (mm) | Conductor Diameter (mm) | Overall Dimension (mm) | Resistance (Ω/m) | Breakdown Voltage (V) | Pitch |
|---|---|---|---|---|---|---|
| Tech Requirement | 0.077-0.084 | 0.071±0.003 | Max. 3.79 | ≤0.004642 | ≥950 | 40±10 |
| Sample 1 | 0.079 | 0.068 | 3.18 | 0.004325 | 2800 | ✓ |
| Sample 2 | 0.081 | 0.070 | 3.32 | 0.044317 | 2700 | ✓ |
