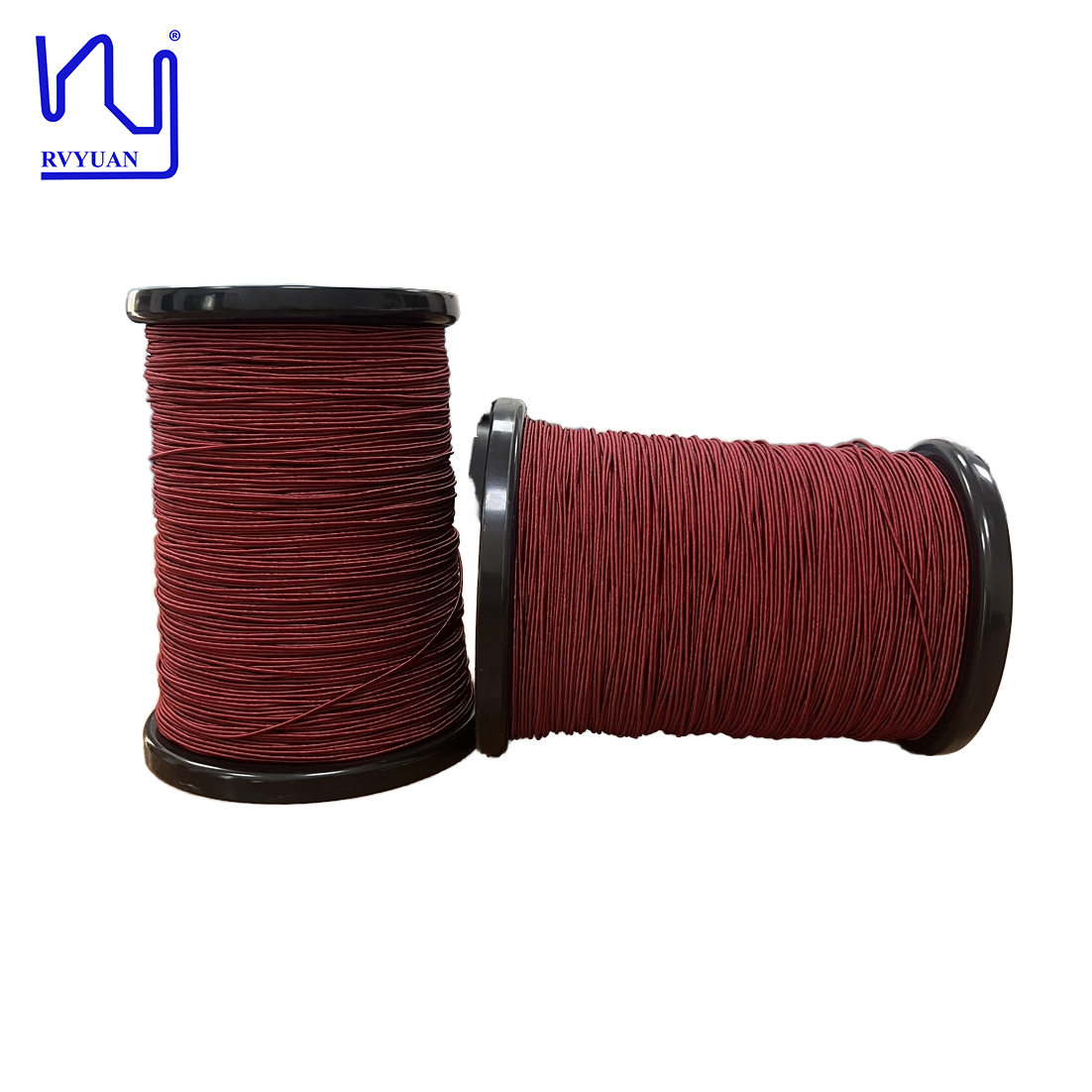

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: ISO9001/ISO14001 /UL/SGS
モデル番号: USTC
最小注文数量: 10kg
価格: negotiable
パッケージの詳細: カートンとスプール
受渡し時間: 2〜15の労働日
支払条件: T/ T/ PayPal
供給の能力: あなたの要求を満たしてください
詳細情報
直径: 0.08mm 温度: 155
証明: IEC/NEMA/JIS/RoHS/ISO 導体:
ストランド: 270 分解電圧: Min.1100
カバー材質: ナイロン 製品名: 高周波撚線 0.08mm 27 ストランド シルク被覆リッツ線
キーワード: 高周波撚線 0.08mm 27 ストランド シルク被覆リッツ線
ハイライト:

silk covered litz wire

,

high frequency litz wire

,

27 strands litz wire


製品の説明

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
