| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Rvyuan |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| モデル番号: | 録音されたlitzワイヤー |
| 最小注文数量: | 20kg |
| 価格: | negotiable |
| パッケージの詳細: | カートンとスプール |
| 受渡し時間: | 2〜15の労働日 |
| 支払条件: | 交渉 |
| 供給の能力: | あなたの要求を満たしてください |
| 名前: | 4KV PET フィルム 0.2mmx80 銅導体テープ リッツ線 | 証明: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| 直径: | 0.2mm | 導体: | 銅 |
| 絶縁: | PIのフィルム | 定格温度: | 155 |
| キーワード: | 4KV PET フィルム 0.2mmx80 銅導体テープ リッツ線 | ストランドの数: | 80 |
| ハイライト: | 4KV PET Film Litz Wire,0.2mm Copper Conductor Wire,Taped Litz Wire with PET |
||

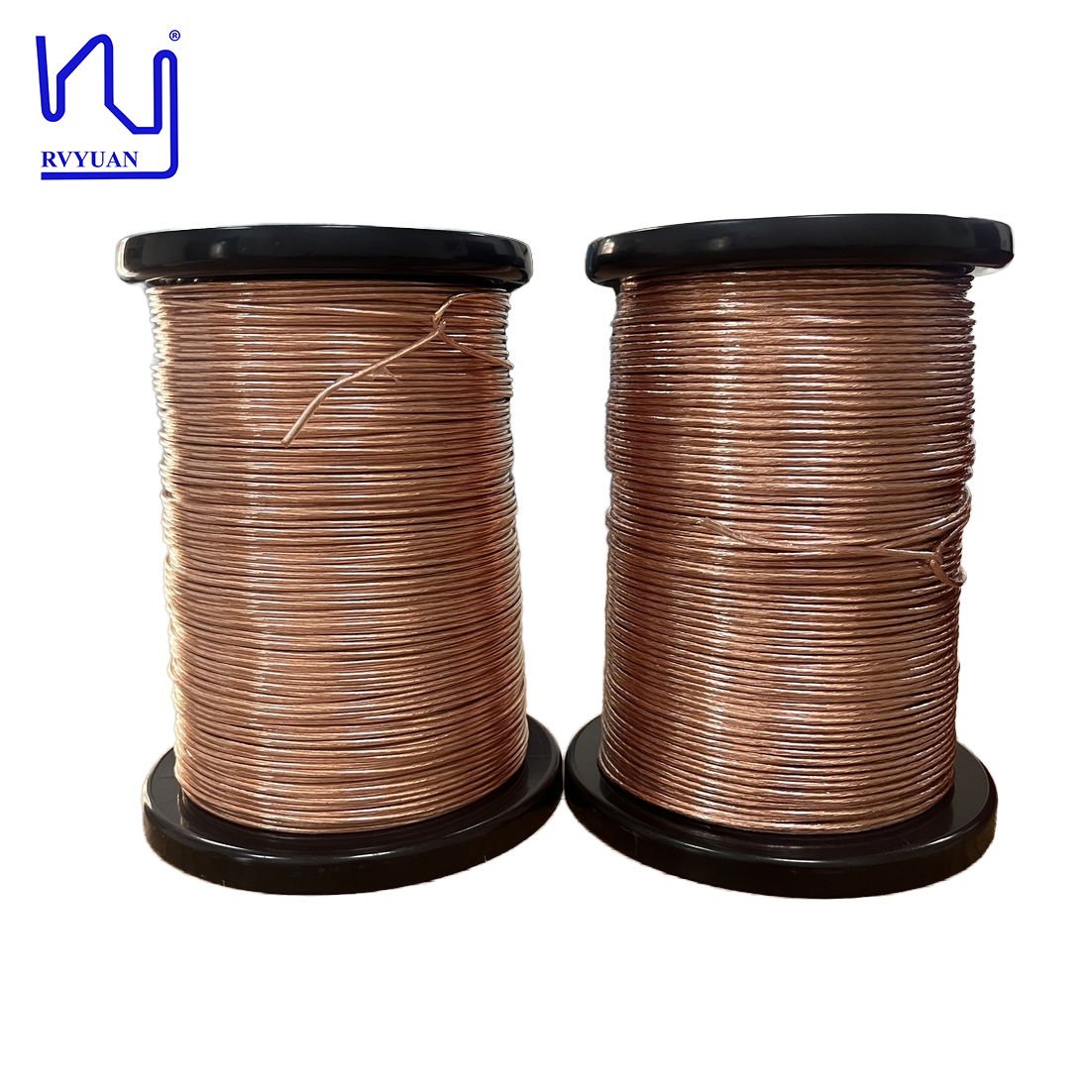

4KV PET Film 0.2mmx80 Copper Conductor Taped Litz Wire
Polyester film, commonly known as PET film, is a plastic film made of polyethylene terephthalate. This versatile material is available in a variety of thicknesses, widths, and transparencyes, making it suitable for a wide range of applications. PET film possesses excellent physical, mechanical, optical, thermal, electrical, and chemical properties, making it popular in industries such as packaging, electronics, and insulation.
| Item No. | Our diameter of single wire mm | Conductor diameter mm | Overall dimension mm | Resistance Ω /m | Breakdown voltage V | Overlap% |
|---|---|---|---|---|---|---|
| Tech requirement | 0.213-0.227 | 0.2±0.003 | Max.2.84 | ≤0.007215 | 4000 | Min. 50 |
| Sample 1 | 0.220-0.223 | 0.198-0.2 | 2.46-2.73 | 0.006814 | 11700 | 53 |
