| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートンとスプール |
| 受渡し時間: | 2〜15の労働日 |
| 支払条件: | T/ T/ PayPal |
| 供給の能力: | あなたの要求を満たしてください |
| 直径: | 0.2mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 40 | 分解電圧: | 最小1600 |
| カバー材質: | ナイロン | 製品名: | 2USTC 0.2mm ナイロン被覆リッツ線 150 ストランド銅線 |
| キーワード: | 2USTC 0.2mm ナイロン被覆リッツ線 150 ストランド銅線 | ||
| ハイライト: | 0.2mm nylon litz wire,150 strands copper litz wire,ustc nylon covered wire |
||

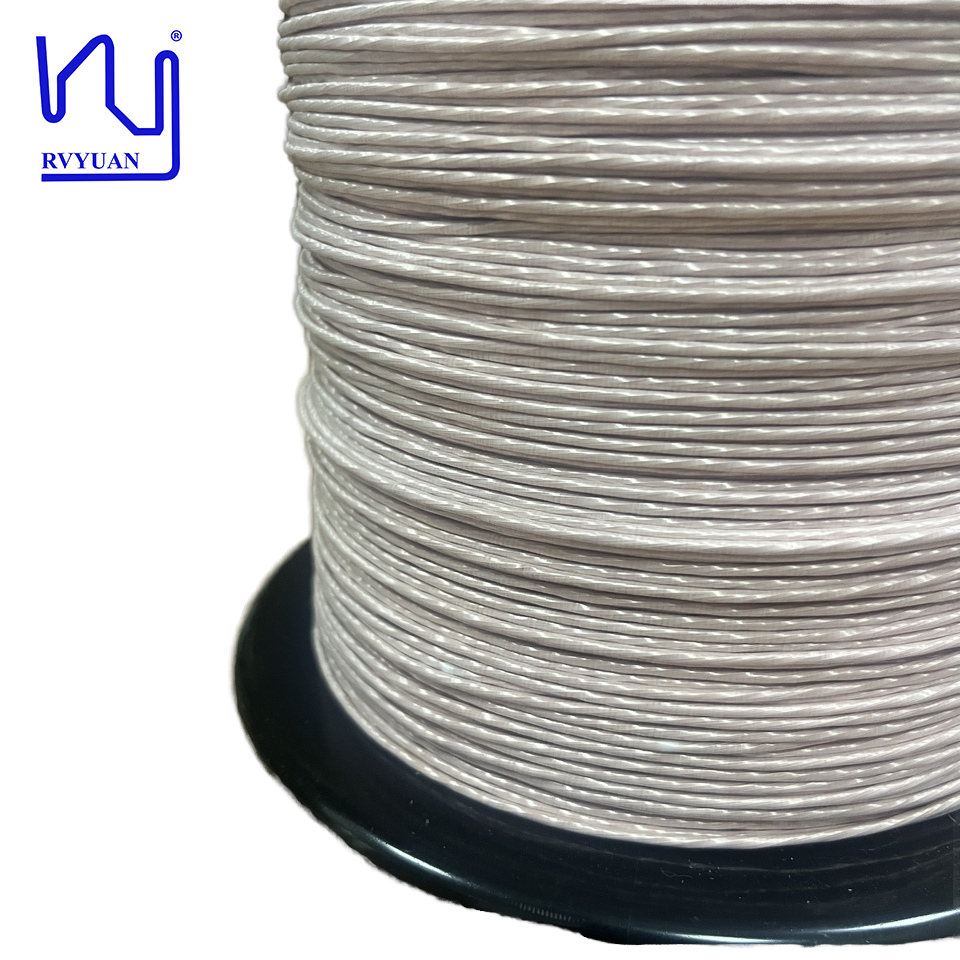

This superior nylon served litz wire features 0.2mm single enameled wire coated with a durable polyurethane, ensuring excellent solderability. You can use it with confidence; soldering will be seamless, making it a reliable choice for a wide range of projects. The litz wire is composed of 40 strands, combining exceptional flexibility and performance.
The outer layer is wrapped in high-quality nylon, which not only enhances durability but also gives it a stylish look. If you prefer other materials, we also offer polyester and silk wrapping options, allowing you to choose the most suitable material according to your needs.
| Item | Technical requests | Test value 1 | Test value 2 |
|---|---|---|---|
| Single Diameter (mm) | 0.216-0.231 | 0.219 | 0.223 |
| Conductor diameter (mm) | 0.2± 0.003 | 0.198 | 0.2 |
| O.D. (mm) | Max.1.8 | 1.57 | 1.70 |
| Resistance Ω/m (20℃) | Max. 0.01443 | 0.01357 | 0.01335 |
| Breakdown Voltage V | 1600 | 3800 | 3600 |
| Pitch mm | 33 ±7 | √ | √ |
| No. of strands | 40 | √ | √ |
