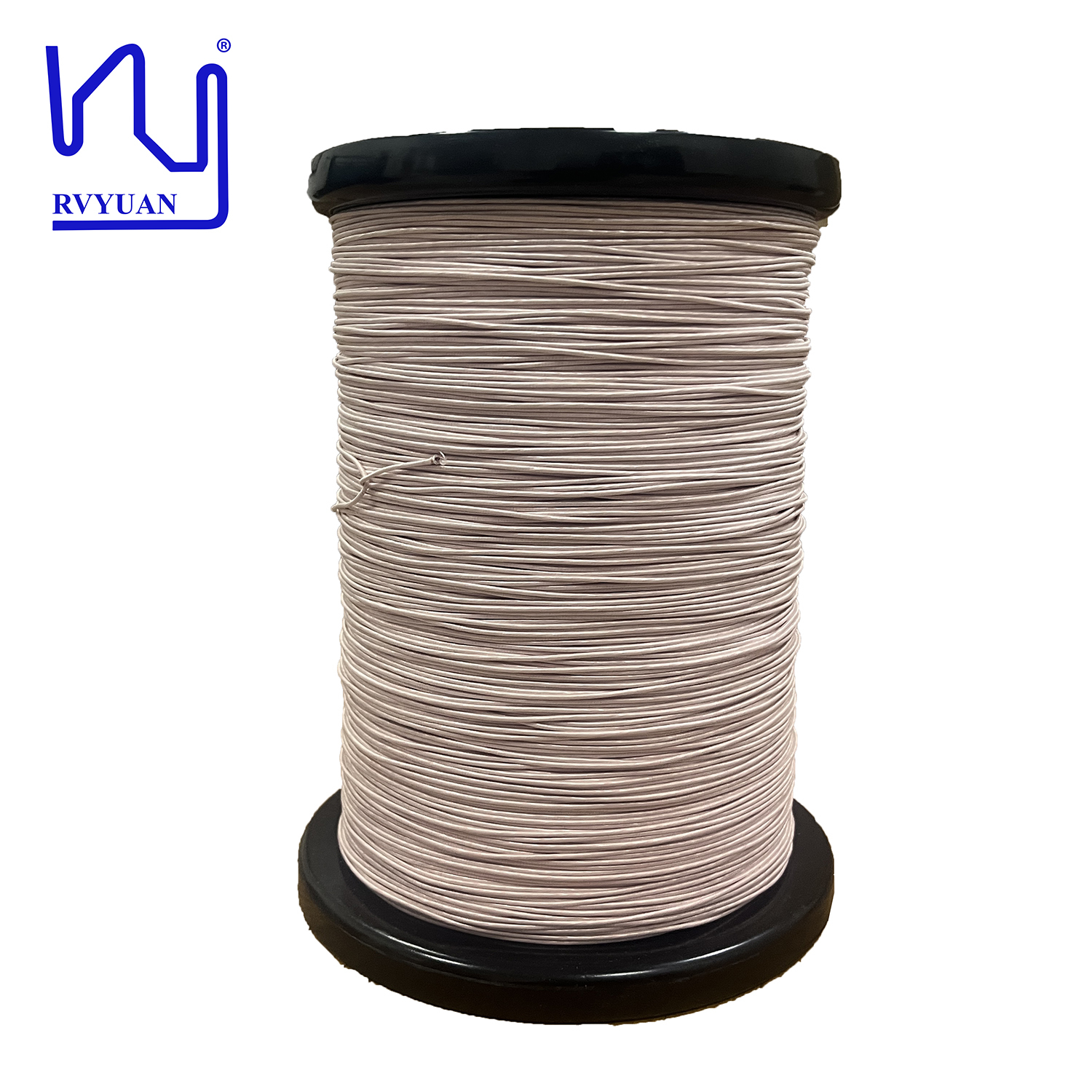

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: ISO9001/ISO14001 /UL/SGS
モデル番号: USTC
最小注文数量: 10kg
価格: negotiable
パッケージの詳細: カートンとスプール
受渡し時間: 2〜15の労働日
支払条件: T/ T/ PayPal
供給の能力: あなたの要求を満たしてください
ベストプライス 接触
詳細情報
直径: 0.1mm 温度: 155
証明: IEC/NEMA/JIS/RoHS/ISO 導体: 銅
ストランド: 100 分解電圧: Min.1100
カバー素材: ナイロン 製品名: 100/0.1 ミリメートル USTC 高温高周波ワイヤーエナメルシルク被覆銅リッツ線
キーワード: 100/0.1 ミリメートル USTC 高温高周波ワイヤーエナメルシルク被覆銅リッツ線
ハイライト:

high temperature enameled litz wire

,

silk covered copper litz wire

,

high frequency ustc litz wire

製品の説明

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.
Mechanical and Physical Advantages
  • The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
  • Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
