| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートンとスプール |
| 受渡し時間: | 2〜15の労働日 |
| 支払条件: | T/ T/ PayPal |
| 供給の能力: | あなたの要求を満たしてください |
| 直径: | 0.071mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 250 | 分解電圧: | 1300 |
| 絶縁: | uew | 製品名: | カスタムリッツワイヤ2-13000ストランドトランス用の銅ストランドワイヤ |
| キーワード: | カスタムリッツワイヤ2-13000ストランドトランス用の銅ストランドワイヤ | ||
| ハイライト: | custom litz wire for transformer,copper stranding litz wire,13000 strands litz wire |
||

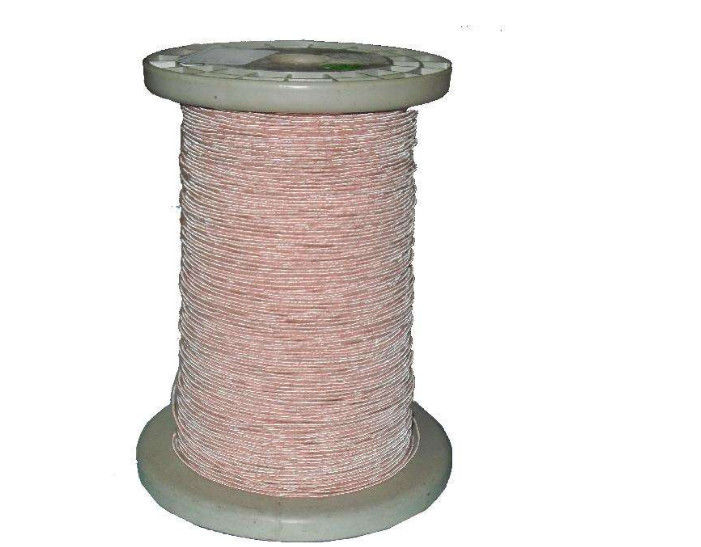

Our company offers a variety of custom litz wire solutions to meet your specific needs. We offer single wire sizes ranging from 0.025 mm to 0.5 mm, with strand counts ranging from single to 13,000 strands.
In addition to stranded wire, we also offer various types of stranded wire with cover, including:
Our products are designed to meet the unique needs of your application, ensuring optimal performance and efficiency. With an emphasis on quality and customization, we work closely with our customers to provide litz wire solutions that perfectly fit their systems.
| Attribute | Value |
|---|---|
| Diameter | 0.071mm |
| Temperature | 155 |
| Certification | IEC/NEMA/JIS/RoHS/ISO |
| Conductor | Copper |
| Strands | 250 |
| Breakdown voltage | 1300 |
| Insulation | UEW |
| Item | Technical requests | Test value 1 | Test value 2 |
|---|---|---|---|
| Conductor Diameter (mm) | 0.076-0.084 | 0.079 | 0.080 |
| Single wire diameter (mm) | 0.071±0.003 | 0.068 | 0.070 |
| O.D. (mm) | Max. 1.85 | 1.57 | 1.68 |
| Resistance Ω/m (20℃) | Max. 0.01196 | 0.01815 | 0.01812 |
| Breakdown Voltage V | 950 | 3100 | 3000 |
| Pitch mm | 29± 5 | √ | √ |
| No. of strands | 250 | √ | √ |
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
