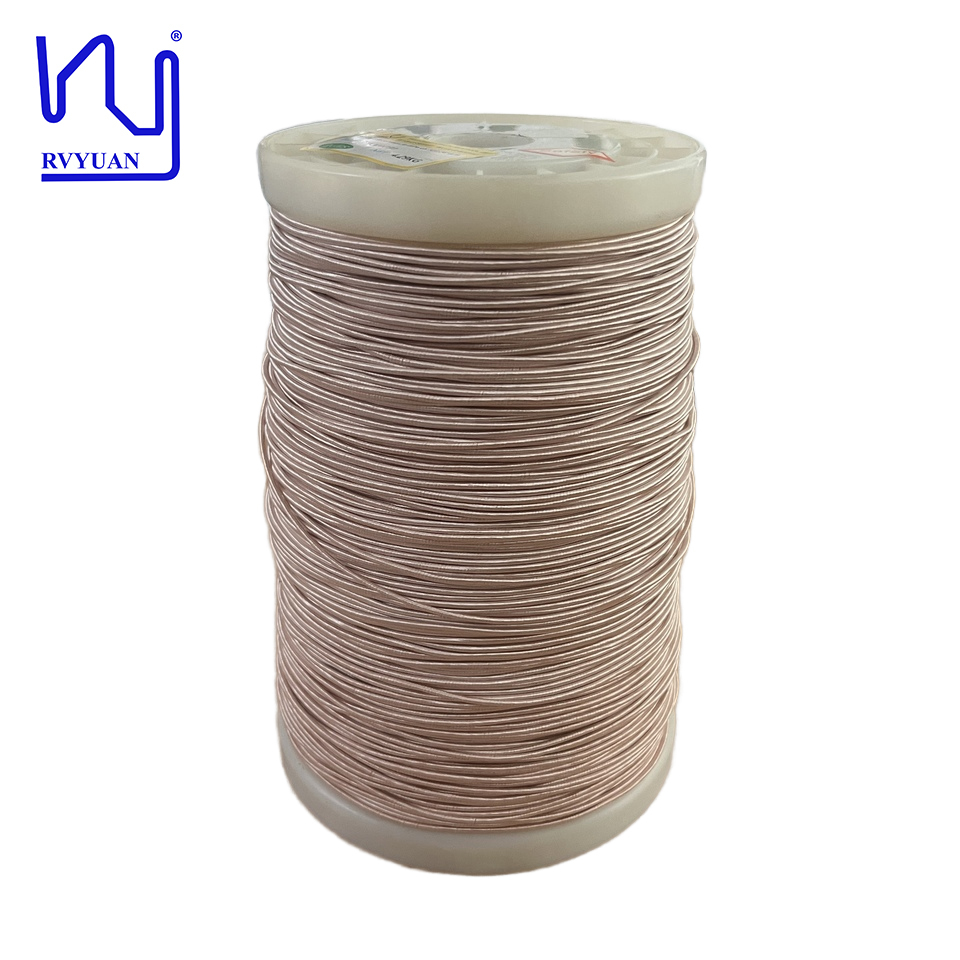

Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire

基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: ISO9001/ISO14001 /UL/SGS
モデル番号: USTC
最小注文数量: 10kg
価格: negotiable
パッケージの詳細: カートンとスプール
受渡し時間: 2〜15の労働日
支払条件: T/ T/ PayPal
供給の能力: あなたの要求を満たしてください
詳細情報
直径: 0.071mm 温度: 155
証明: IEC/NEMA/JIS/RoHS/ISO 導体:
ストランド: 250 分解電圧: 1300
絶縁: uew 製品名: カスタマイズ可能な0.071mm* 250ストランドUSTCシルクカバー断熱リッツ銅線
キーワード: カスタマイズ可能な0.071mm* 250ストランドUSTCシルクカバー断熱リッツ銅線
ハイライト:

customizable USTC litz copper wire

,

0.071mm silk insulated litz wire

,

250 strands silk covered wire


製品の説明

Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire
Our company understands the importance of supporting startups and small businesses. We offer a small, customizable ordering service, enabling you to order the quantity of silk covered litz wire you need without the burden of excessive inventory. This flexibility allows you to bring innovative ideas to life while maintaining cost-effectiveness. Our team is committed to working with you throughout the entire process, from initial design to final production, to ensure you receive a high-quality product that exceeds your expectations.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire 0
