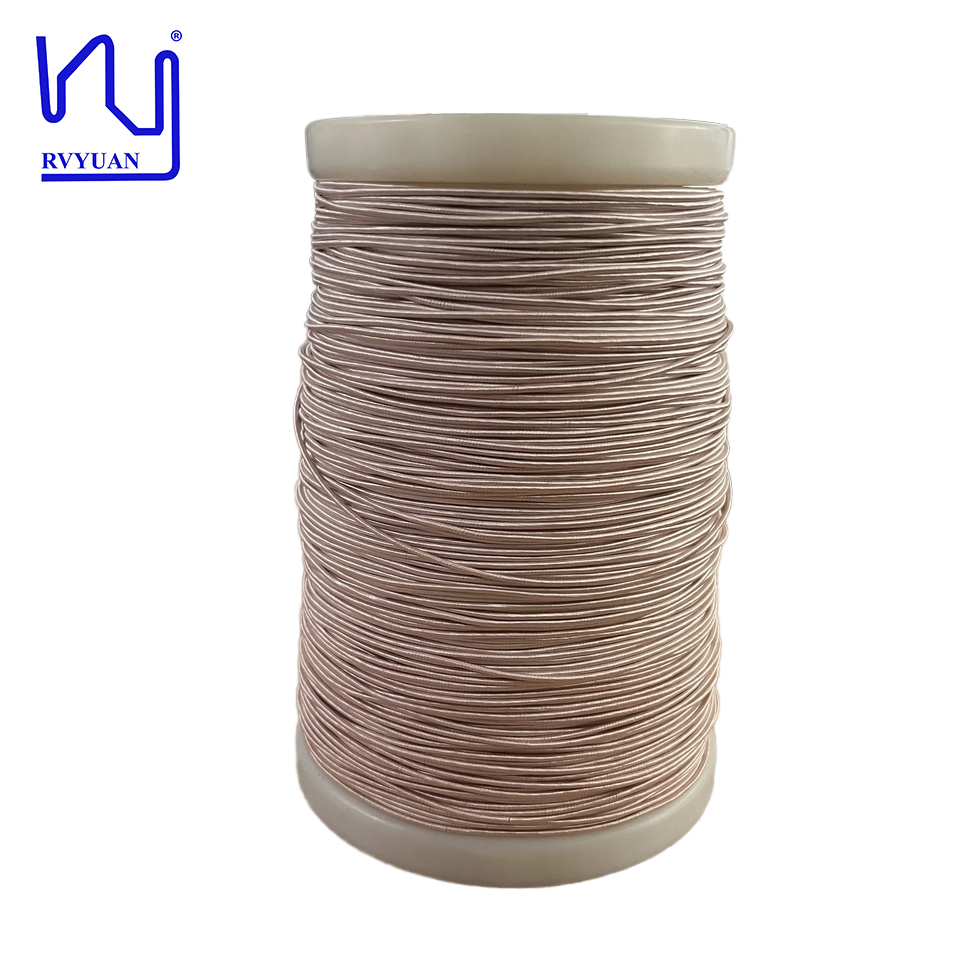

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers

基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: ISO9001/ISO14001 /UL/SGS
モデル番号: USTC
最小注文数量: 10kg
価格: negotiable
パッケージの詳細: カートンとスプール
受渡し時間: 2〜15の労働日
支払条件: T/ T/ PayPal
供給の能力: あなたの要求を満たしてください
詳細情報
直径: 0.071mm 温度: 155
証明: IEC/NEMA/JIS/RoHS/ISO 導体:
ストランド: 250 分解電圧: 1300
絶縁: uew 製品名: カスタム0.071mmナイロンは、変圧器用の銅リッツワイヤを提供しています
キーワード: カスタム0.071mmナイロンは、変圧器用の銅リッツワイヤを提供しています
ハイライト:

custom nylon served litz wire

,

0.071mm copper litz wire

,

litz wire for transformers


製品の説明

Custom 0.071mm Nylon Served Copper Litz Wire for Transformers
With over 23 years of experience in litz wire production, we pride ourselves on our expertise and commitment to quality. Our extensive product line includes not only silk-covered litz wire, but also taped litz wire, taped flat litz wire, and stranded wire. This broad selection enables us to meet diverse application needs across a wide range of industries.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Custom 0.071mm Nylon Served Copper Litz Wire for Transformers 0
We understand that every project is unique, so we're committed to providing customized solutions to meet your specific needs. Working closely with our customers, we ensure the final product meets their exact design specifications.
