| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートンとスプール |
| 受渡し時間: | 2〜15 営業日 |
| 支払条件: | T/T/ペイパール |
| 供給の能力: | あなたの要求を満たしてください |
| 直径: | 0.071mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| 繊維: | 250 | 分解電圧: | 1300 |
| 絶縁: | UEW | 製品名: | 2UDTC-F 0.071MMX250天然シルクカバーされたリッツワイヤ |
| キーワード: | 2UDTC-F 0.071MMX250天然シルクカバーされたリッツワイヤ | ||
| ハイライト: | natural silk litz wire,0.071mm silk covered wire,250 natural silk litz |
||
| Attribute | Value |
|---|---|
| Diameter | 0.071mm |
| Temperature | 155 |
| Certification | IEC/NEMA/JIS/RoHS/ISO |
| Conductor | Copper |
| Strands | 250 |
| Breakdown voltage | 1300 |
| Insulation | UEW |

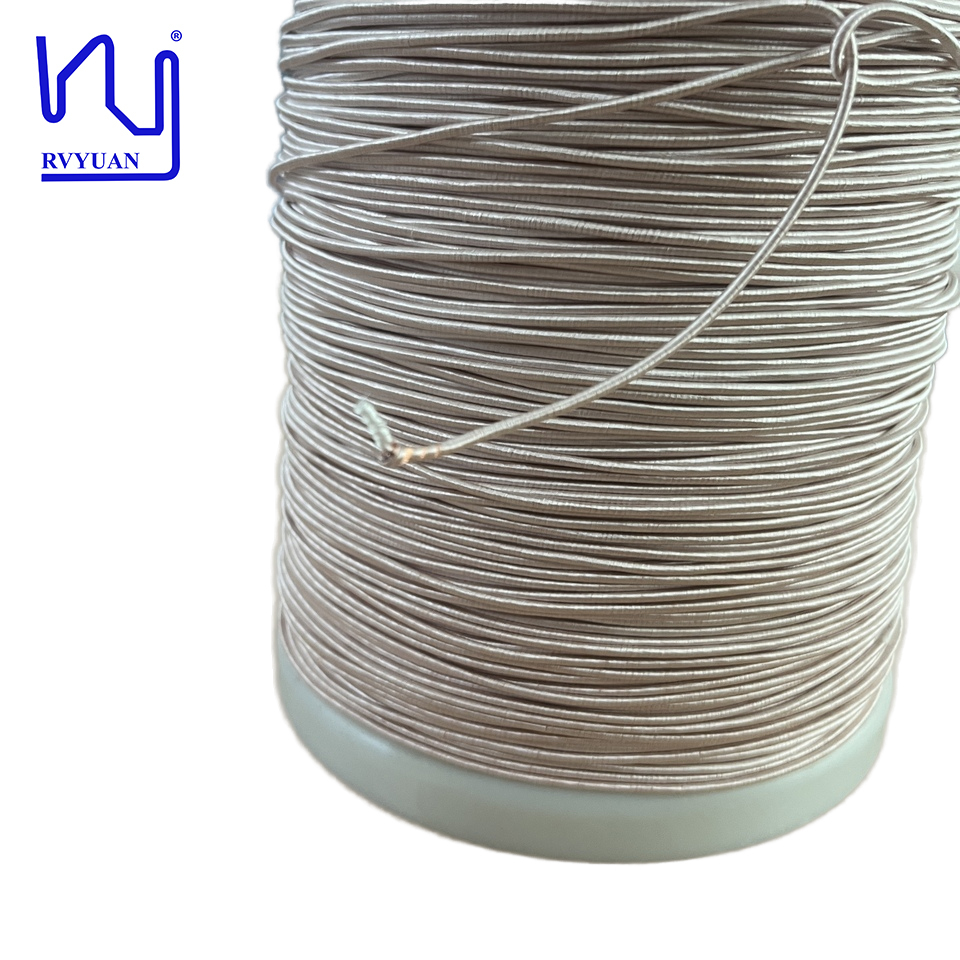

We proudly introduce our premium Silk covered Litz Wire, a product meticulously crafted to meet the specific needs of our customers. This exceptional wire features a single 0.071mm enameled silver wire, finely twisted into 250 strands. Elegantly encased in natural silk, it not only looks great but also enhances performance. Our Silk covered Litz Wire is particularly well-suited for transformer winding and voice coil wire production, where precision and reliability are crucial.
| Item | Technical requests | Test value 1 | Test value 2 |
|---|---|---|---|
| Conductor Diameter (mm) | 0.076-0.084 | 0.079 | 0.080 |
| Single wire diameter (mm) | 0.071±0.003 | 0.068 | 0.070 |
| O.D. (mm) | Max. 1.85 | 1.57 | 1.68 |
| Resistance Ω/m (20℃) | Max. 0.01196 | 0.01815 | 0.01812 |
| Breakdown Voltage V | 950 | 3100 | 3000 |
| Pitch mm | 29± 5 | √ | √ |
| No. of strands | 250 | √ | √ |
