| Place of Origin: | China |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | USTC |
| Minimum Order Quantity: | 10kg |
| 価格: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Diameter: | 0.2mm | Temperature: | 155/180 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | Conductor: | Copper |
| Insulation: | UEW | Product name: | 0.2mm Single Strand Enameled Copper Wire Nylon Covered |
| Key word: | 0.2mm Single Strand Enameled Copper Wire Nylon Covered | ||
| ハイライト: | Single Strand Enameled Copper Wire,0.2mm Enameled Copper Wire,Nylon Covered enamelled copper wire |
||

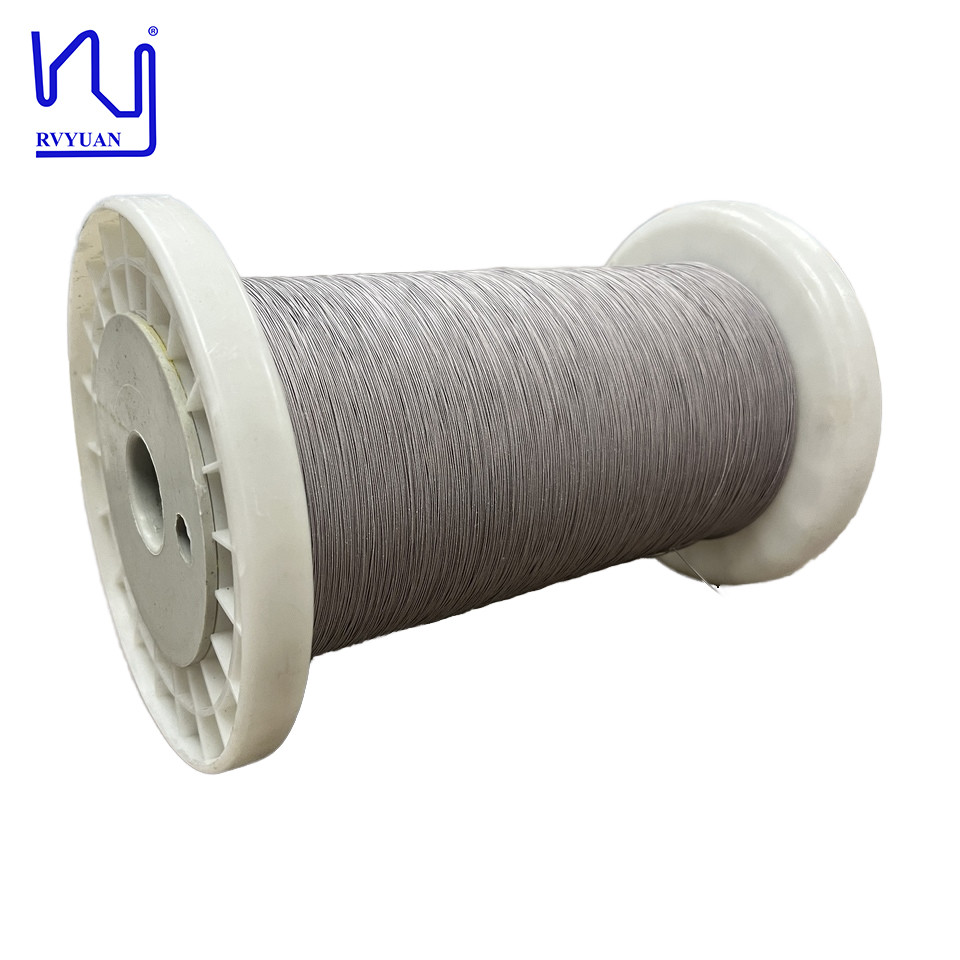

0.2mm Single Strand Enameled Copper Wire Nylon Covered
This cable is very special and unique in that it is made of a single enameled wire wrapped around a polyester wire. The inner enameled wire is coated with a solderable polyurethane varnish, while the outer layer can be made of nylon or silk. This cable can be used to make audio equipment and wireless charging coils.
|
Item |
Silk covered enameled copper wire |
|
Individual wire diameter |
0.2mm |
|
Conductor material |
Copper |
|
Insulation |
Polyurethane |
|
Jacket |
Polyester/nylon |
|
No. of strands |
1 |
|
Thermal rating |
155℃ |
|
Color options |
Grey,green, red |
