| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | USTC |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートン付きのコイル |
| 受渡し時間: | 2〜15 営業日 |
| 支払条件: | 交渉 |
| 供給の能力: | あなたの要求を満たす |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire | Key word: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire |
| ハイライト: | Pure Copper Twisted Litz Wire,0.1mm Yarn Wrapped Litz Wire,Durable Twisted Litz Wire |
||

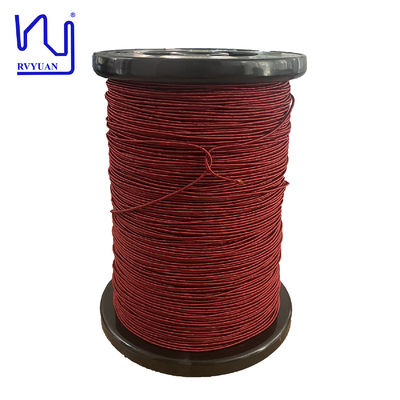

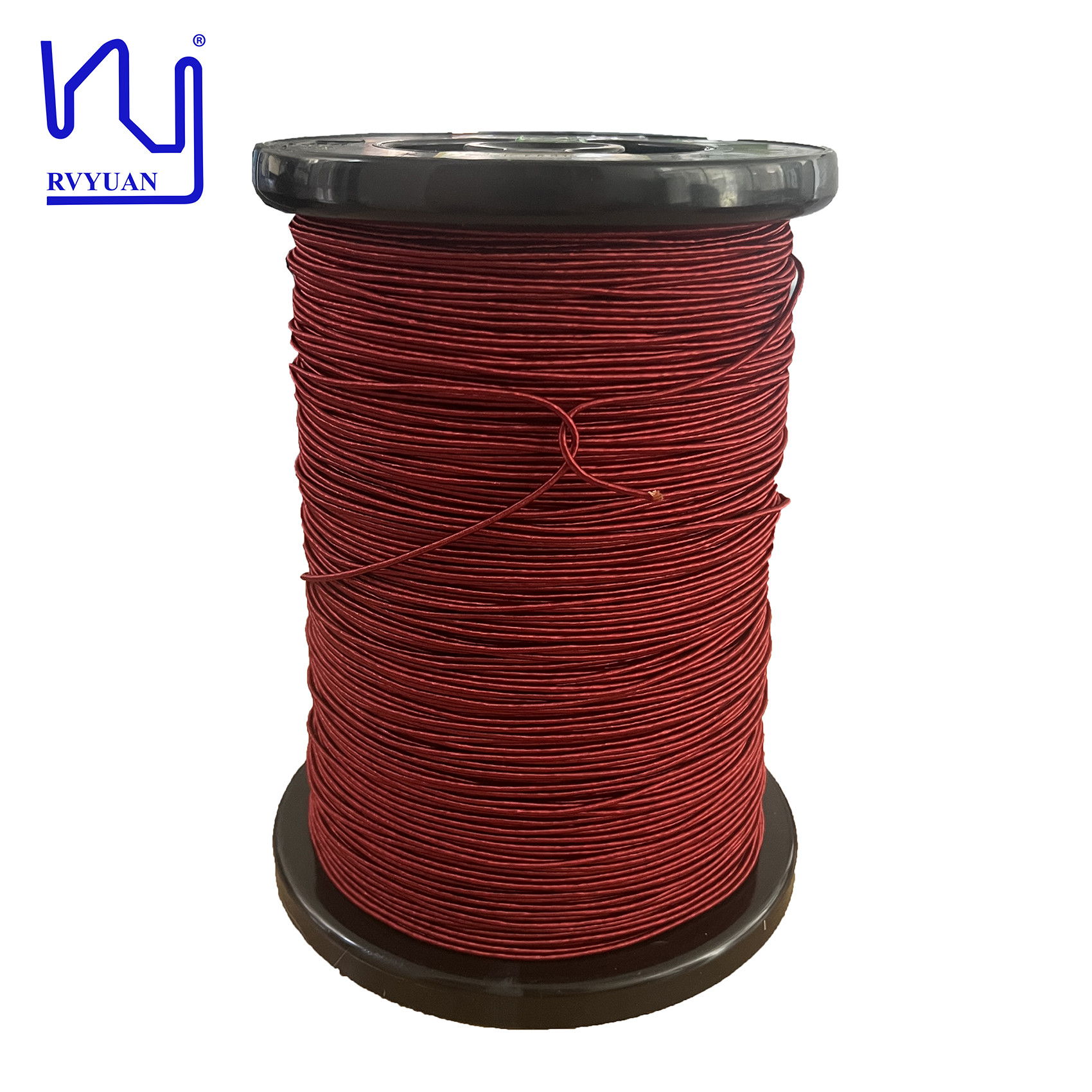

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
