| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | ISO9001/ISO14001 /UL/SGS |
| モデル番号: | 2UEW-F-PI 0.07x800 |
| 最小注文数量: | 20kg |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン付きスプール |
| 受渡し時間: | 15営業日 |
| 支払条件: | T/T/ペイパル |
| 供給の能力: | ご要望にお応えします |
| 直径: | 0.07mm | 温度: | 155 |
|---|---|---|---|
| 証明: | IEC/NEMA/JIS/RoHS/ISO | 導体: | 銅 |
| ストランド: | 800 | 耐電圧: | 最小6000 |
| 重要な仕事: | カプトンテープリッツ線 | ||
| ハイライト: | custom taped litz wire,high-frequency transformer windings,copper litz wire with warranty |
||

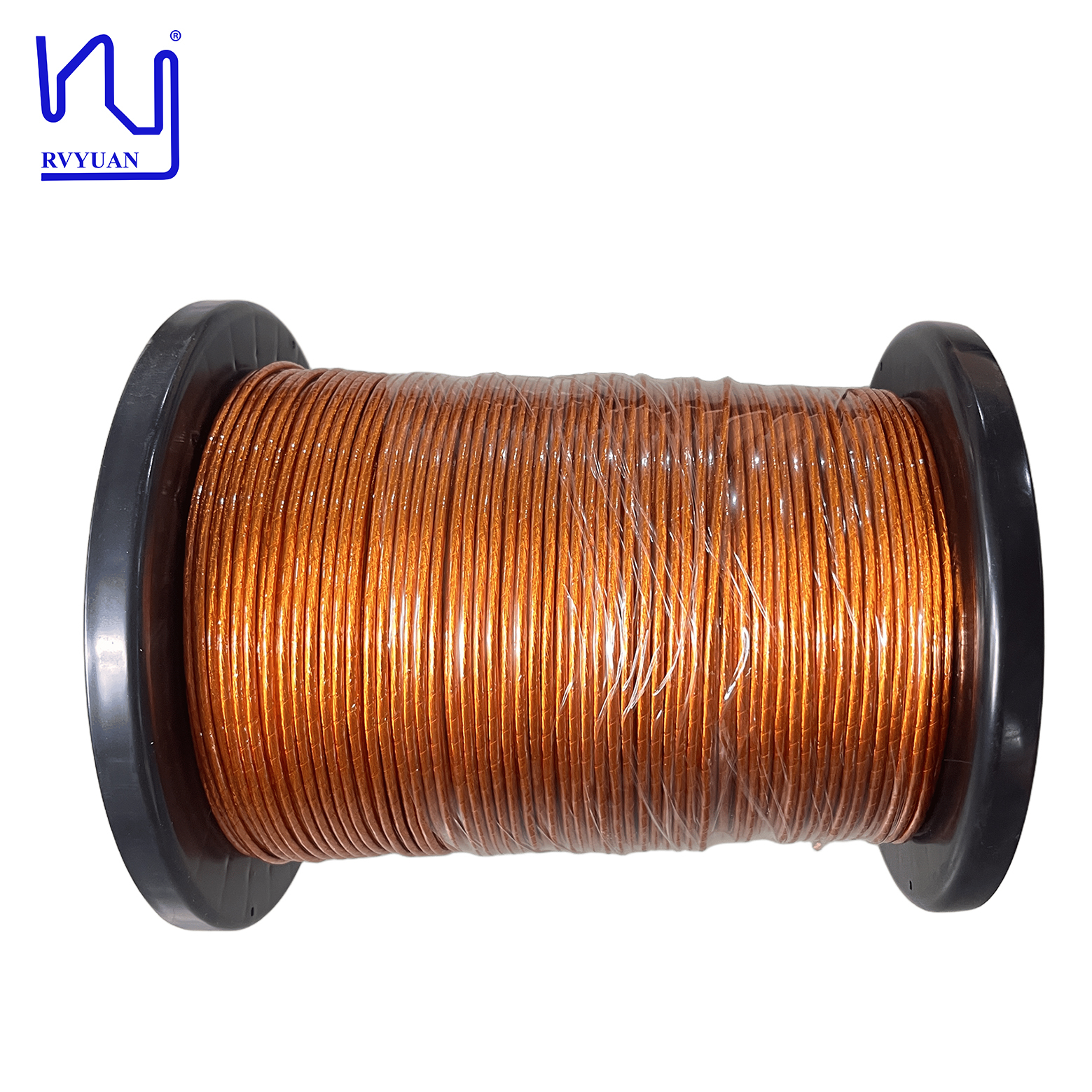

Our custom taped litz wire is engineered specifically for high-frequency transformer windings, delivering superior performance in demanding power electronics applications.
| Item | Tech Requirement | Measured Value | Result |
|---|---|---|---|
| Single Wire Diameter (mm) | 0.079-0.082 | 0.079 | 0.080 | 0.079 | 0.079 | 0.080 | Qualified |
| Conductor | 0.070±0.001 | 0.069 | 0.070 | 0.070 | 0.069 | 0.069 | Qualified |
| O.D. (mm) | 2.57-2.92 | 2.86 | 2.70 | 2.63 | 2.84 | 2.85 | Qualified |
| Resistance (Ω/m) | 0.00535-0.00636 | 0.005567 | 0.005703 | 0.005771 | / | / | Qualified |
| Dielectric Strength (V) | ≥4000 | 9360 | Qualified |
| Configuration | 0.07X32X5X5 | 0.07X32X5X | Qualified |
| Tape Overlap (%) | ≥50 | 50 | Qualified |
| Bunching Direction | S/S/S | S/S/S |
Ideal for high-frequency transformers, medical equipment, aerospace applications, precision sensors, audio products, and power modules in consumer, automotive, and industrial power supplies requiring excellent heat dissipation and signal integrity.
Yes. Samples are either free or charged, but the shipping cost is borne by the customer.
Sample orders: 3-5 working days; bulk orders: completed within 15 working days after order confirmation.
Submit inquiry with requirements → Sample making → Sample approval → Quotation → Proforma Invoice (PI) → PI confirmation → Payment arrangement → Production → Shipment
Yes, but the MOQ (Minimum Order Quantity) is subject to negotiation.
T/T, D/P, L/C, PayPal.
FedEx, DHL, TNT, UPS, with discounts up to 80%.
Laser diameter gauge, high-voltage spark tester, elongation tester, spring-back tester, withstand voltage tester, solderability tester, Resistance Tester etc.
Our products are ideal for applications requiring high efficiency and space-saving solutions in high-frequency AC environments, including power electronics & power supplies, EV on-board chargers, wireless charging systems, green energy, communications & IT, medical equipment, industrial robots, servo motors, etc.
Major markets include Europe and the US, as well as South Korea, Japan, India, and Southeast Asia.
We can sign a non-disclosure agreement (NDA) upon request and commit to strictly abiding by its terms throughout the entire cooperation process.
All specifications are subject to standard manufacturing tolerances. Contact us to discuss your specific winding requirements and for detailed technical data sheets and custom specifications.
