詳細情報

製品名:	2UEW-F 電子機器用 0.02mm エナメル銅線	絶縁:	ポリウレタン
導体の種類:	固体	温度:	155
キーワード:	2UEW-F 電子機器用 0.02mm エナメル銅線	ストック:	利用可能
直径:	0.020mm	材料:	銅
ハイライト:	ultra fine enameled copper wire , 0.02mm enameled wire for electronics , 2UEW-F enameled copper wire

製品の説明

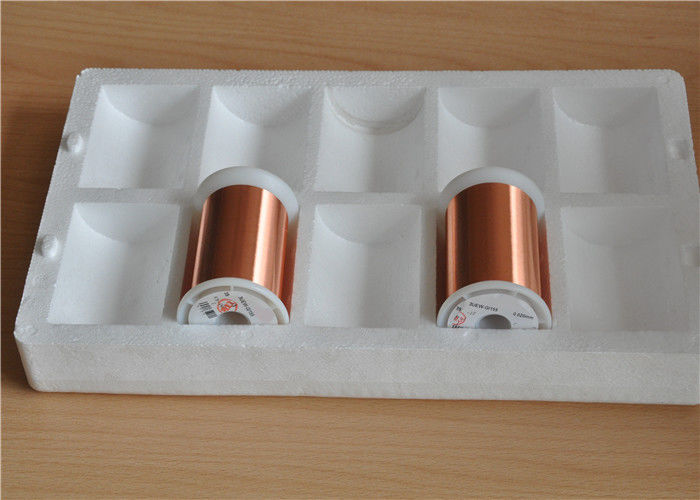

2UEW-F 0.02mm Enameled Copper Wire For Electronics

0.02mm ultra-thin enameled copper wire can be used in multiple fields in electronic products, mainly including:

Motor windings: In micro motors and stepper motors, ultra-thin enameled copper wire can be used as winding coils to improve the efficiency and performance of the motor.
Transformer: In small transformers, ultra-thin enameled copper wire can be used to wind coils to achieve efficient power conversion.
Audio Equipment: In high-fidelity speakers and headphones, ultra-thin enameled copper wire can be used for voice coils and connecting wires to improve sound quality.
Sensors: Among various sensors (such as temperature sensors, pressure sensors, etc.), ultra-thin enameled copper wire can be used for signal transmission and connection.
Circuit Boards: In high-density interconnect circuit boards (HDI PCBs), ultra-thin enameled copper wires can be used for fine connections and signal transmission.
LED Lighting: In LED lighting fixtures, ultra-thin enameled copper wire can be used to connect LED chips and driver circuits.
Wireless Charging: In wireless charging devices, ultra-thin enameled copper wires can be used in coils to achieve efficient energy transfer.
Medical Equipment: In some medical instruments, ultra-thin enameled copper wires can be used for sensors and signal transmission.

Due to its ultra-thin nature, 0.02mm enameled copper wire is very useful in applications that require high precision and high efficiency.

Technical Specifications

Characteristics	Technical Requests	Sample 1	Sample 2	Sample 3	Conclusion
Surface	Good	OK	OK	OK	OK
Bare Wire Diameter	0.020±0.001	0.020	0.020	0.020	OK
Overall diameter	≤ 0.027 mm	0.0260	0.0260	0.0260	OK
Insulation thickness	≥ 0.003 mm	0.0060	0.0060	0.0060	OK
Elongation	≥ 8 %	11	10	11	OK
Breakdown voltage	≥ 200 V	1234	1178	1246	OK
Pinbole test	≤ 24 hole/30m	0	0	0	OK
Electrical Resistance	≤ 59.779 Ω/m	55.68	55.73	55.64	OK

Additional Test Results

Test items	Technical Requests	Results	Conclusion
Adhesive	No crack	OK	Approved
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390±5℃ 2Sec Smooth	OK
Cut-through	200℃ 2min No breakdown	OK
