| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | UL/ISO9001/ISO14001/RoHS/Reach |
| モデル番号: | 0.15mm |
| 最小注文数量: | 3000メートル |
| 価格: | negotiable |
| パッケージの詳細: | カートン |
| 受渡し時間: | 7日間 |
| 支払条件: | T/T/PayPal |
| 供給の能力: | 1ton/month |

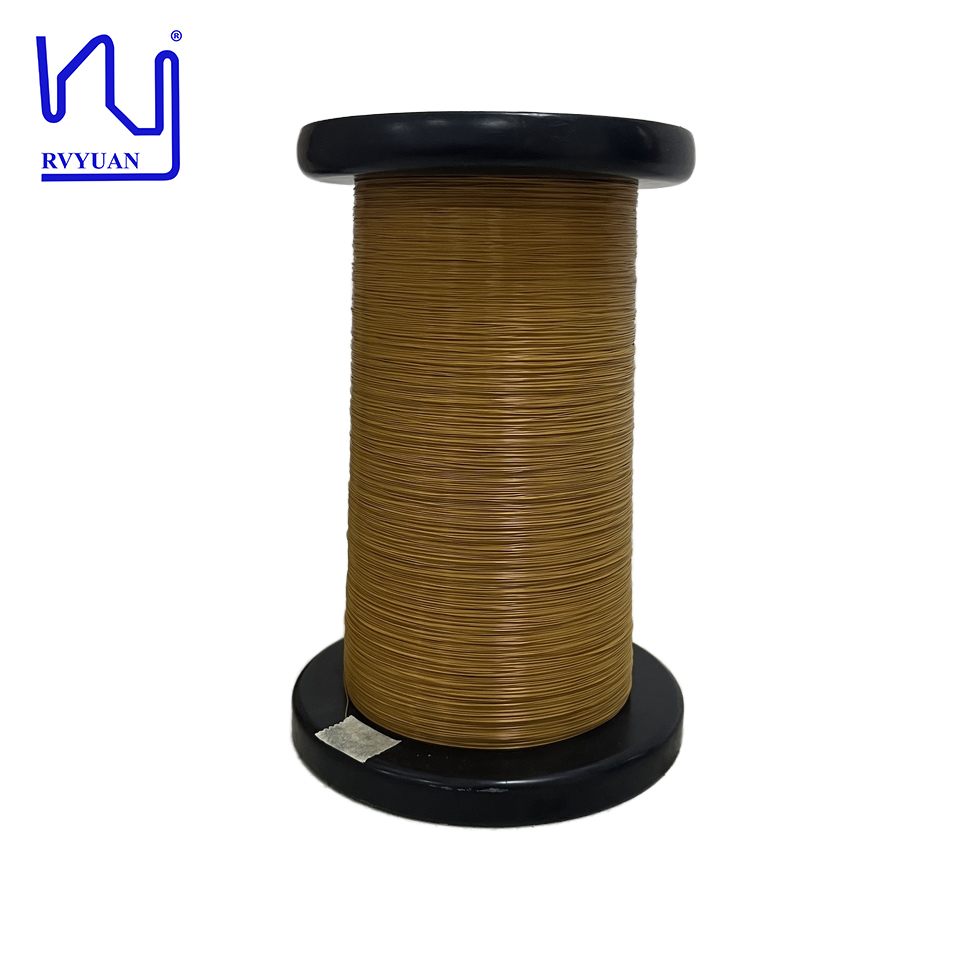

| 製品名: | カスタムETFE 155℃強化絶縁0.15mmトライプ絶縁電線 | 熱値: | 155 |
|---|---|---|---|
| 単一ワイヤの直径: | 0.15mm | 導体材質: | 銅 |
| insualtion: | ETFEについて | ||
| ハイライト: | Custom ETFE triple insulated wire,155℃ reinforced insulation wire,0.15mm triple insulated wire |
||
| Item | Standard | Test Result |
|---|---|---|
| Outer diameter of conductor (mm) | 0.169mm(Max.) | 0.163 | 0.165 | 0.163 |
| Enamel coating thickness | 0.008mm(min.) | 0.013 | 0.016 | 0.014 |
| Conductor | 0.15±0.003mm | 0.15 | 0.149 | 0.149 |
| Elongation | 15%(min.) | 30.6 | 30.6 | 30.6 |
| Overall dimension | 0.350-0.365mm(max.) | 0.359 | 0.362 | 0.359 |
| Insulation thickness | 0.1±0.01mm(min) | 0.099 | 0.101 | 0.094 |
| Pinhole | 0 M/1 fault(max) | 0 | 0 | 0 |
| Resistance | 1037Ω,km(max) | 1007.3 | 1001.6 | 1004.8 |
| Breakdown voltage | 6KV(min) | 16.6 | 17 | 17.6 |
| Solderability(±10℃) | 450℃ 3s smooth | ok | ok | ok |
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
