42AWG Red Color Poly-Coated/ Plain/ Heavy Formvar Enameled Copper Wire For Guitar

基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: UL/ISO9001/ISO14001/RoHS/Reach
モデル番号: 42 AWG
最小注文数量: 2kg
価格: negotiable
パッケージの詳細: カートン
受渡し時間: 3日間
支払条件: T/T/PayPal
供給の能力: 1ton/month
詳細情報
製品名: 42AWG 赤色ポリコーティング/プレーン/ヘビー Formvar エナメル銅線ギター用 絶縁: 赤いポリ
サイズ: AWG42 応用: ギターの積み込みのコイル
MOQ: 2KG(1ロール)
ハイライト:

42AWG enameled copper wire for guitar

,

red poly-coated guitar pickup wire

,

heavy formvar guitar pickup wire


製品の説明

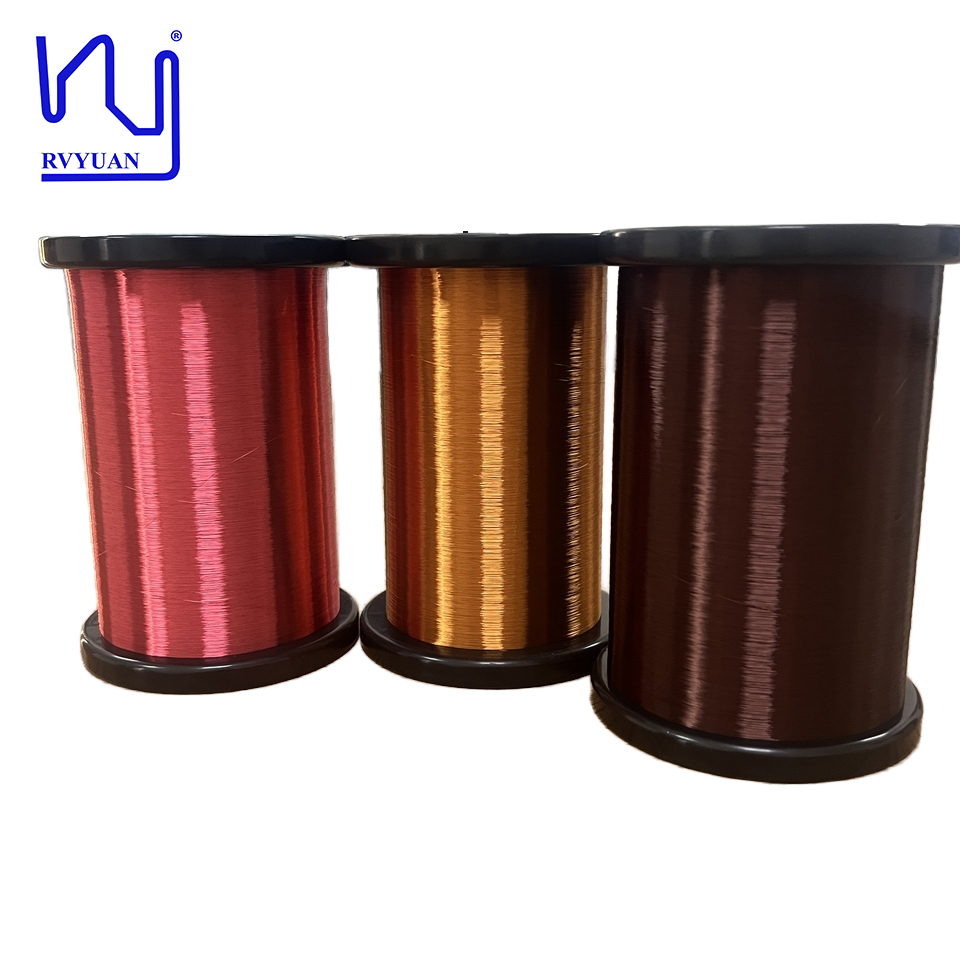

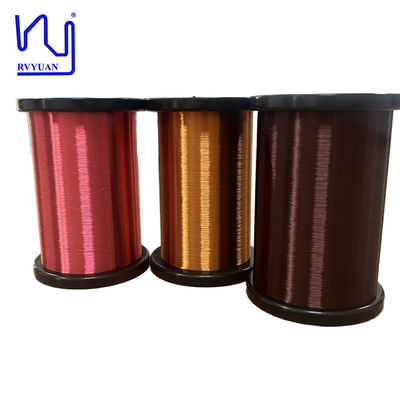

42AWG Red Color Poly-Coated/ Plain/ Heavy Formvar Enameled Copper Wire For Guitar
42 AWG 0.063mm Plain / Heavy Formvar Enameled Copper Wire For Guitar Pickup Coils

We supply some of the world's guitar pickup craftsmen with wire custom made to order.

Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.

Popular insulation options
  • Plain
  • Poly
  • Heavy formvar

Customized colors and size: only 20kg you can choose your exclusive color

Guitar pickup specialists

We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.

  • Plain wire
  • Heavy formvar wire
  • Poly-coated wire

The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.

The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.

42awg Heavy formvar wire
Characteristics Technical requests Test results
Conductor diameter 0.063mm±0.002 0.063mm
Overall dimension ≤0.074mm 0.071mm
Conductor resistance ≤ 5.900 Ω/m 5.478
Breakdown voltage ≥ 400 V 1768
42AWG Red Color Poly-Coated/ Plain/ Heavy Formvar Enameled Copper Wire For Guitar 0
