UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

基本情報
起源の場所: 中国
ブランド名: RVYUAN
証明: UL/ISO9001/ISO14001/RoHS/Reach
モデル番号: 0.1mm
最小注文数量: 1000メートル
価格: negotiable
パッケージの詳細: カートン
受渡し時間: 7日
支払条件: T/T/PayPal
供給の能力: 1ton/month
詳細情報
製品名: UL安全0.1MMX250ストランドTIW Litz Wire ETFE押出コーティング 熱値: 155
単一ワイヤの直径: 0.1mm 導体材料:
ストランドの数: 250 insualtion: ETFEについて
ハイライト:

UL safety Litz wire ETFE coating

,

TIW Litz wire 250 strands

,

ETFE extruded triple insulated wire


製品の説明

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating
The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.
Product Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK

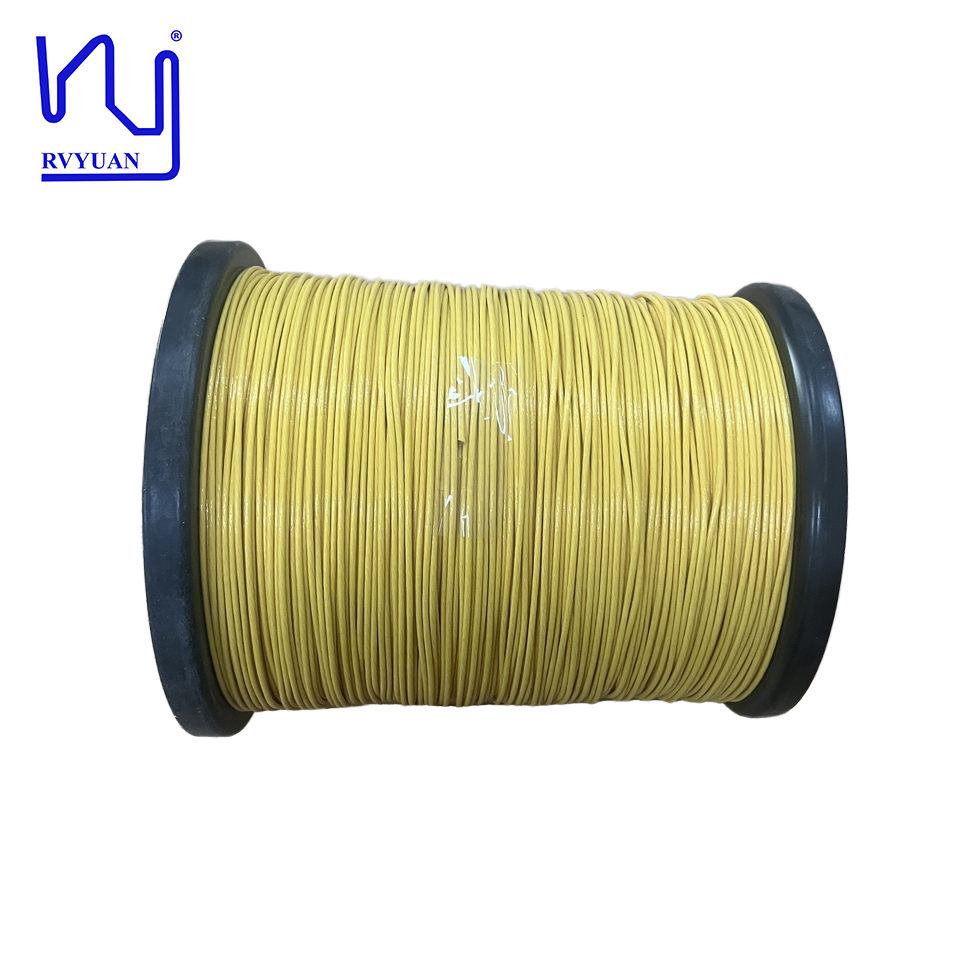

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating 0
Customization & Support
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
