| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | UL/ISO9001/ISO14001/RoHS/Reach |
| モデル番号: | 0.27mm |
| 最小注文数量: | 1000メートル |
| 価格: | negotiable |
| パッケージの詳細: | カートン |
| 受渡し時間: | 7日 |
| 支払条件: | T/T/PayPal |
| 供給の能力: | 1ton/month |
| 製品名: | カスタムクラス155 7ストランド押し出しETFE絶縁銅litzワイヤ | 熱値: | 155 |
|---|---|---|---|
| 単一ワイヤの直径: | 0.27mm | 導体材料: | 銅 |
| ストランドの数: | 7 | insualtion: | ETFEについて |
| ハイライト: | Custom Class 155 Litz Wire,7 Strands ETFE Insulation Wire,Extruded Copper Litz Wire |
||

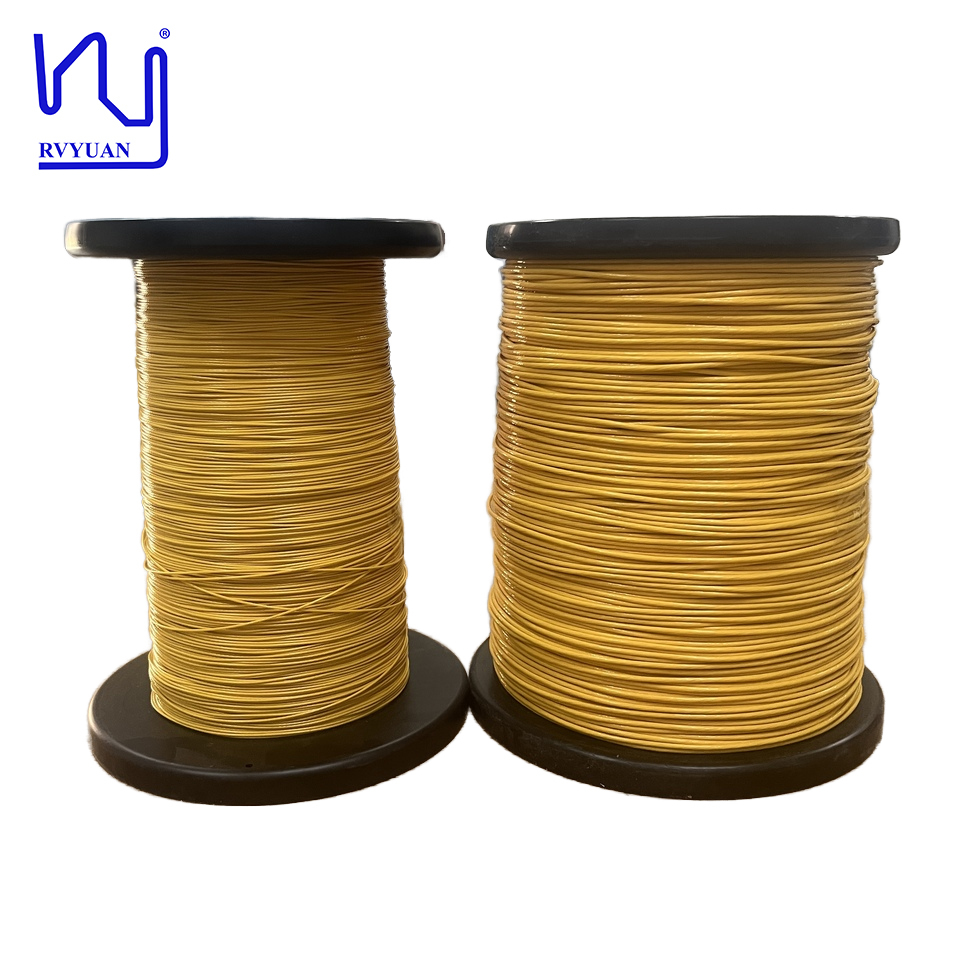

Custom Class 155 7 Strands Extruded ETFE Insulation Copper Litz Wire
A cable composed of multiple strands of insulated wire, twisted or braided together in a specific configuration to reduce AC resistance, particularly at high frequencies.
Ethylene Tetrafluoroethylene, a fluoropolymer known for its high dielectric strength, excellent thermal stability, resistance to chemicals and UV radiation, and low friction properties.
| Characteristics | Test Standard | Test result |
|---|---|---|
| Outer diameter of single wire | 0.295mm | 0.288 | 0.287 | 0.287 |
| Min. insulation thickness | /Mm(min) | 0.019 | 0.018 | 0.019 |
| Pitch | S12±2 | ok | ok | ok |
| Single wire Diameter | 0.27±0.004MM | 0.269 | 0.269 | 0.268 |
| Overall dimension | 1.06-1.2mm(Max) | 1.078 | 1.088 | 1.085 |
| Conductor Resistance | Max. 45.23Ω/KM(max) | 44.82 | 44.73 | 44.81 |
| Breakdown voltage | Min. 6KV(min) | 15 | 14.5 | 14.9 |
| Solder ability | 450℃ 3Secs | OK | OK | OK |
| Conclusion | Qualified |
We have a professional team to provide technical support. Custom specifications available upon request.
