| Place of Origin: | China |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | 10KG |
| 価格: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T/Paypal |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Width: | 3.0mm |
|---|---|---|---|
| Thickness: | 0.2mm | Applications: | Motor, transformer |

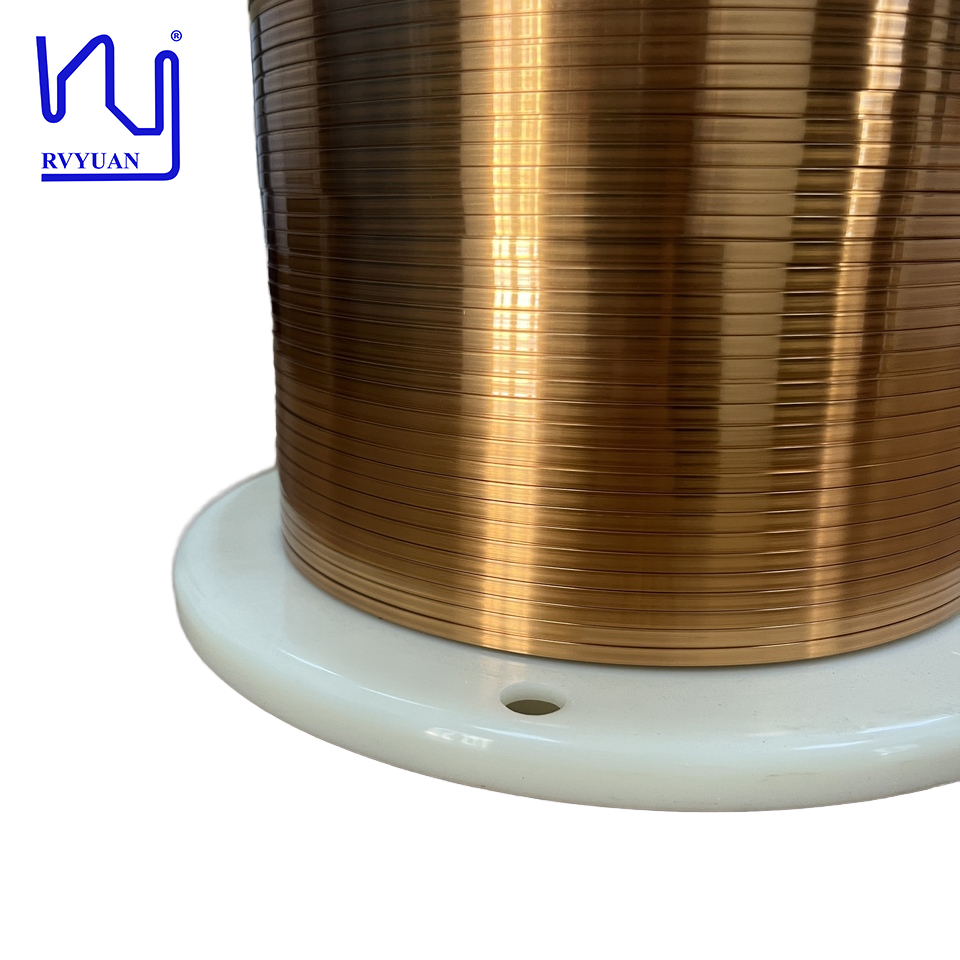

| Thermal Grade: | 180 | Key word: | Class180 0.3mmx3.0mm Enameled Flat Copper Wire For Motor |
| Enamel coating: | UEW | ||
| ハイライト: | enameled flat copper wire motor,0.3mmx3.0mm rectangular copper wire,flat copper wire for motor winding |
||
| Item | Conductor dimension | Unilateral insulation layer thickness | Overall dimension | Breakdown voltage | ||||
|---|---|---|---|---|---|---|---|---|
| Thickness | Width | Thickness | Width | Thickness | Width | |||
| Unit | mm | mm | mm | mm | mm | mm | kv | |
| SPEC | AVE | 0.300 | 3.000 | 0.025 | 0.025 | / | / | |
| Max | 0.309 | 3.060 | 0.040 | 0.040 | 0.35 | 3.1 | ||
| Min | 0.191 | 2.940 | 0.010 | 0.010 | / | / | 0.700 | |
| No. 1 | 0.301 | 2.998 | 0.020 | 0.029 | 3.341 | 3.045 | 1.320 | |
| No. 2 | 1.085 | |||||||
| No. 3 | 1.030 | |||||||
| No. 4 | 0.960 | |||||||
| No. 5 | 1.152 | |||||||
| Avg | 0.301 | 2.998 | 0.020 | 0.029 | 0.341 | 3.045 | 1.109 | |
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |
| Result | OK | OK | OK | OK | OK | OK | OK | |
