| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| モデル番号: | クラス220 |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートン付きのコイル |
| 受渡し時間: | 2〜15 営業日 |
| 支払条件: | T/T/PAYPAL |
| 供給の能力: | あなたの要求を満たす |
| Shape: | Rectangular | Conductor Dimension (Width): | 1.0mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.2mm | Applications: | Motor, transformer |
| Thermal Grade: | 220 | Key word: | MW 84-C 0.2X1.0mm Polyamideimide 220℃ Enameled Coated Flat Copper Wire for Wound Coils |
| Thermal rating: | 220 | Enamel coating: | AIW |
| ハイライト: | polyamideimide enameled flat copper wire,0.2X1.0mm enameled copper wire |
||
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Conductor Dimension (Width) | 1.0mm |
| Unilateral Insulation Layer Thickness (Width) | 0.2mm |
| Applications | Motor, transformer |
| Thermal Grade | 220 |
| Thermal Rating | 220℃ |
| Enamel Coating | AIW |

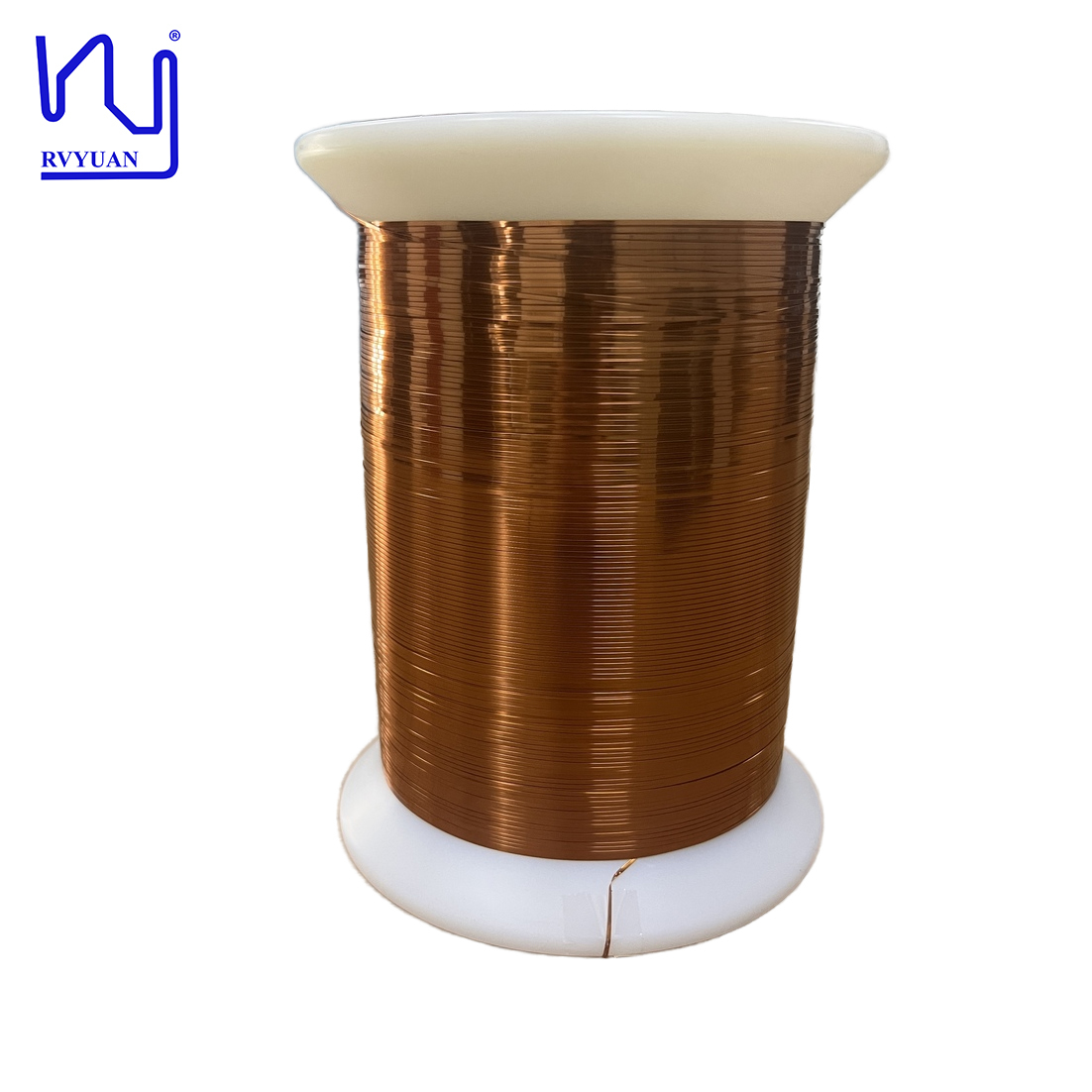

MW 84-C 0.2X1.0mm Polyamideimide 220℃ enameled coated flat copper wire is designed for wound coils with superior performance characteristics.
Ideal for various industries including electronics, automotive, and digital applications to enhance product efficiency and performance.
| Item | Conductor dimension | Insulation thickness | Overall dimension | Dielectric breakdown voltage (kV) | Conductor resistance (Ω/km 20℃) | |||
|---|---|---|---|---|---|---|---|---|
| T (mm) | W (mm) | T (mm) | W (mm) | T (mm) | W (mm) | |||
| SPEC AVE | 0.200 | 1.000 | 0.025 | 0.0025 | / | / | ||
| Max | 0.209 | 1.060 | 0.040 | 0.004 | 0.250 | 1.100 | 96.380 | |
| Min | 0.191 | 0.940 | 0.010 | 0.010 | 0.700 | |||
