| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| モデル番号: | AIW220 |
| 最小注文数量: | 10kg |
| 価格: | negotiable |
| パッケージの詳細: | カートン付きのコイル |
| 受渡し時間: | 7日 |
| 支払条件: | T/T,ペイパール |
| 供給の能力: | あなたの要求を満たす |
| Shape: | Rectangular | Width of conductor: | 9.0mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.7mm |
| Applications: | Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles | Thermal Grade: | 220 |
| Key word: | Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles | ||
| ハイライト: | 0.7mm Rectangular Copper Wire,AIW 220 Rectangular Copper Wire,Motor Windings Rectangular Copper Wire |
||

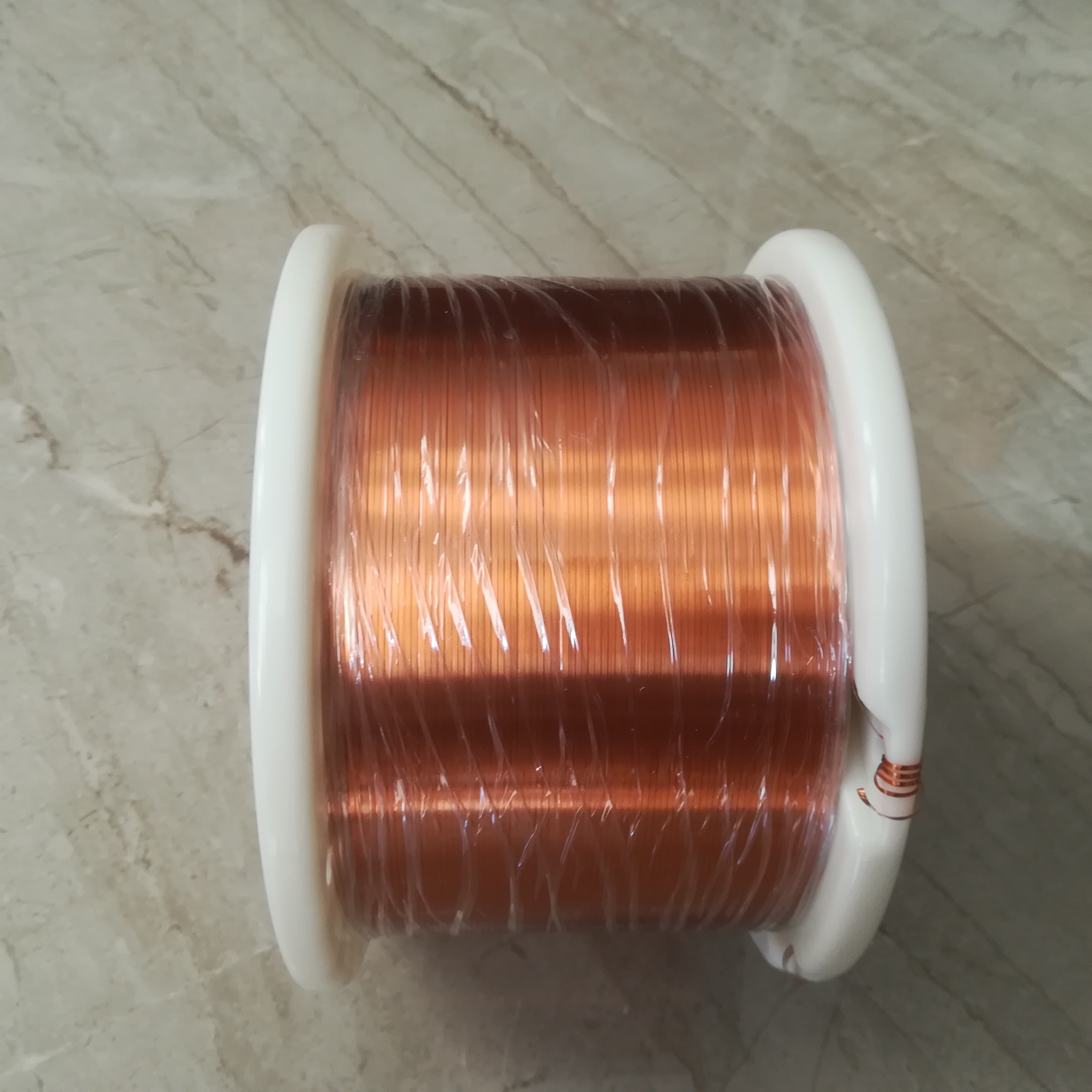

Rectangular Wire AIW 220 9.0x0.7mm Enameled Flat Copper Wire for Motor Windings
we know that every project is unique, so we offer custom options to tailor our enameled rectangular copper wire to your specific needs. Our professional team is ready to assist you in selecting the right specifications to ensure that the product you receive not only meets your expectations, but even exceeds them. Experience the reliability and performance of Ruiyuan enameled rectangular copper wire now and take your project to new heights.
|
Conductor Dimension(mm) |
Thickness of single insulation(mm) |
Overall Dimension(mm) |
Max. Conductor Resistance 20℃(Ω/km) |
Breakdown voltage(kv) |
||
|
Width |
Thickness |
Width |
Thickness |
|||
|
9.000±0.08 |
0.700±0.03 |
0.025±0.015 |
Max. 9.10 |
Max.0.78 |
2.978 |
0.7 Min |
