| 起源の場所: | 中国 |
|---|---|
| ブランド名: | RVYUAN |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| モデル番号: | クラス220 |
| 最小注文数量: | differet MOQが付いている異なったタイプ |
| 価格: | negotiable |
| パッケージの詳細: | カートン付きのコイル |
| 受渡し時間: | 2〜15 営業日 |
| 支払条件: | 交渉,T/T,L/C |
| 供給の能力: | あなたの要求を満たす |
| Shape: | Rectangular | Conductor Dimension (Width): | 2mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.5mm | Applications: | Solderable Self Adhesive 0.2mmx5.0mm Enameled Flat Copper WireCustomized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire |
| Thermal Grade: | 220 | Key word: | Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire |
| ハイライト: | Customized Rectangular Enameled Copper Wire,Customized Rectangular Copper Wire,0.2mmx5.0mm Enameled Flat Copper Wire |
||

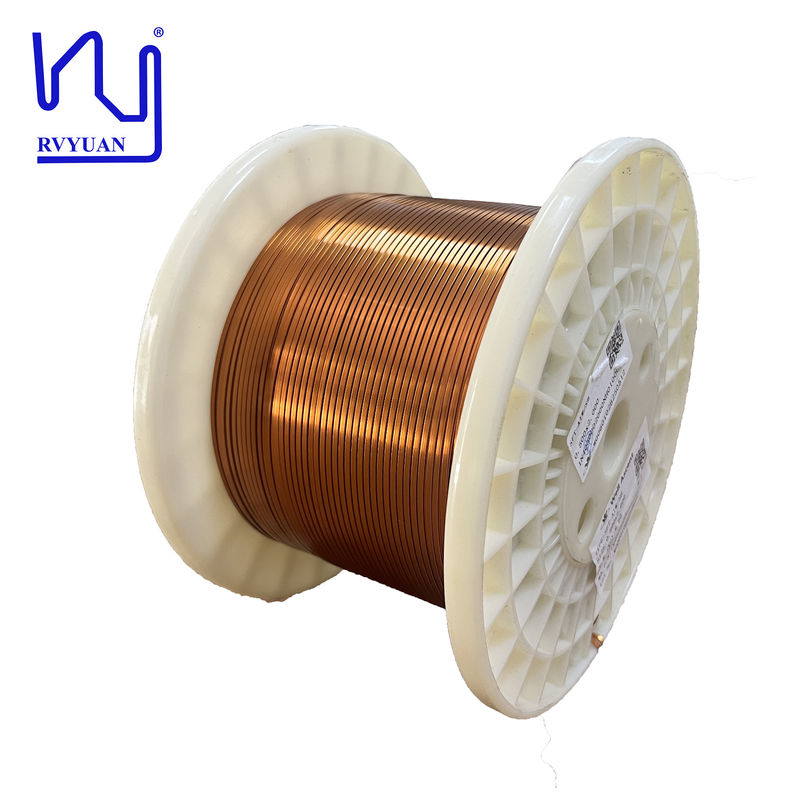

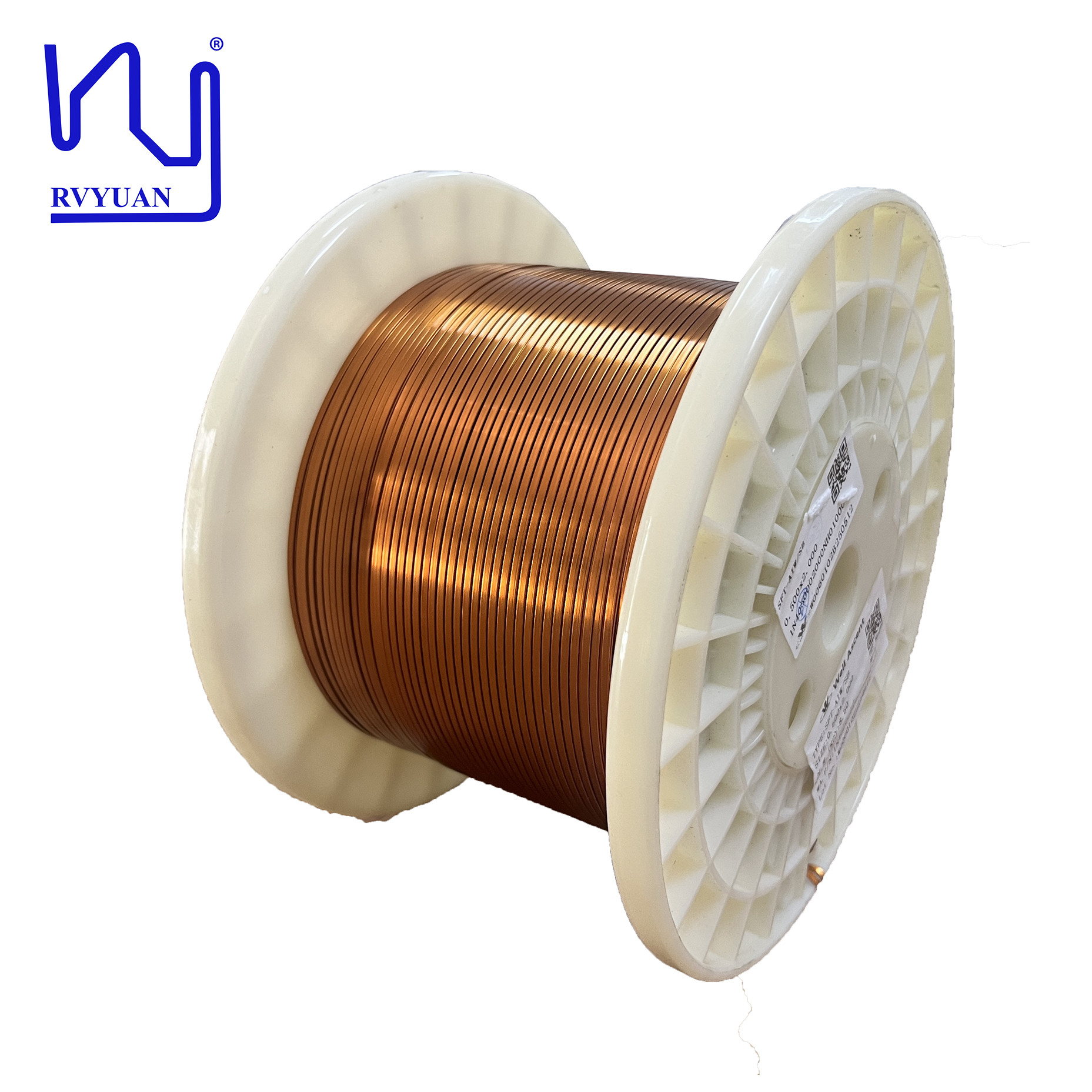

Customized Rectangular Wire 0.2mmx5.0mm Enameled Flat Copper Wire
Our enameled flat copper wire offers superior performance, excellent conductivity and durability. We are committed to high quality and customization, offering a range of options to meet your specific needs, ensuring you get the perfect product for your application.
|
Item
|
Conductor dimension
|
Unilateral adhesive paint thickness |
Unilateral insulation layer thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance |
||||
| Thickness | Width | Thickness | Width |
Thickness
|
Width | |||||
| Unit |
mm
|
mm
|
mm | mm | mm |
mm
|
mm
|
kv
|
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.000
|
/ | 0.025 | 0.025 |
/
|
/ | ||
|
Max |
0.509
|
2.060
|
/ | 0.040 | 0.040 | 0.0560 | 2.110 | 19.490 | ||
|
Min
|
0.491
|
1.940
|
0.002 | 0.010 | 0.010 |
/
|
/ | 0.700 | ||
|
No. 1
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052
|
2.310 |
18.420 |
|
| No. 2 | 2.690 | |||||||||
| No. 3 | 2.520 | |||||||||
| No. 4 | 3.101 | |||||||||
| No. 5 | 3.454 | |||||||||
| No. 6 | / | |||||||||
| No. 7 | / | |||||||||
| No. 8 | / | |||||||||
| No. 9 | ||||||||||
| No. 10 | / | |||||||||
|
Avg
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 2.815 | ||
|
Number of reading
|
1
|
1
|
1
|
1
|
5 | |||||
|
Min. reading
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 2.310 | ||
|
Max. reading
|
0.495
|
2.001 | 0.003 | 0.023 | 0.022 |
0.548
|
2.052 | 3.454 | ||
|
Range
|
0.000
|
0.000
|
0.000
|
0.000
|
1.144 | |||||
|
Result
|
OK
|
OK
|
OK
|
OK
|
OK
|
OK | ||||
