| Place of Origin: | China |
|---|---|
| ブランド名: | Rvyuan |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 10kg |
| 価格: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 13000V Taped Litz Wire Enameled Copper Stranded Wire | 証明: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor: | Copper |
| Insulation: | PI film | Rated Temperature: | 180 |
| Key word: | 13000V Taped Litz Wire Enameled Copper Stranded Wire | No. of strands: | 120 |

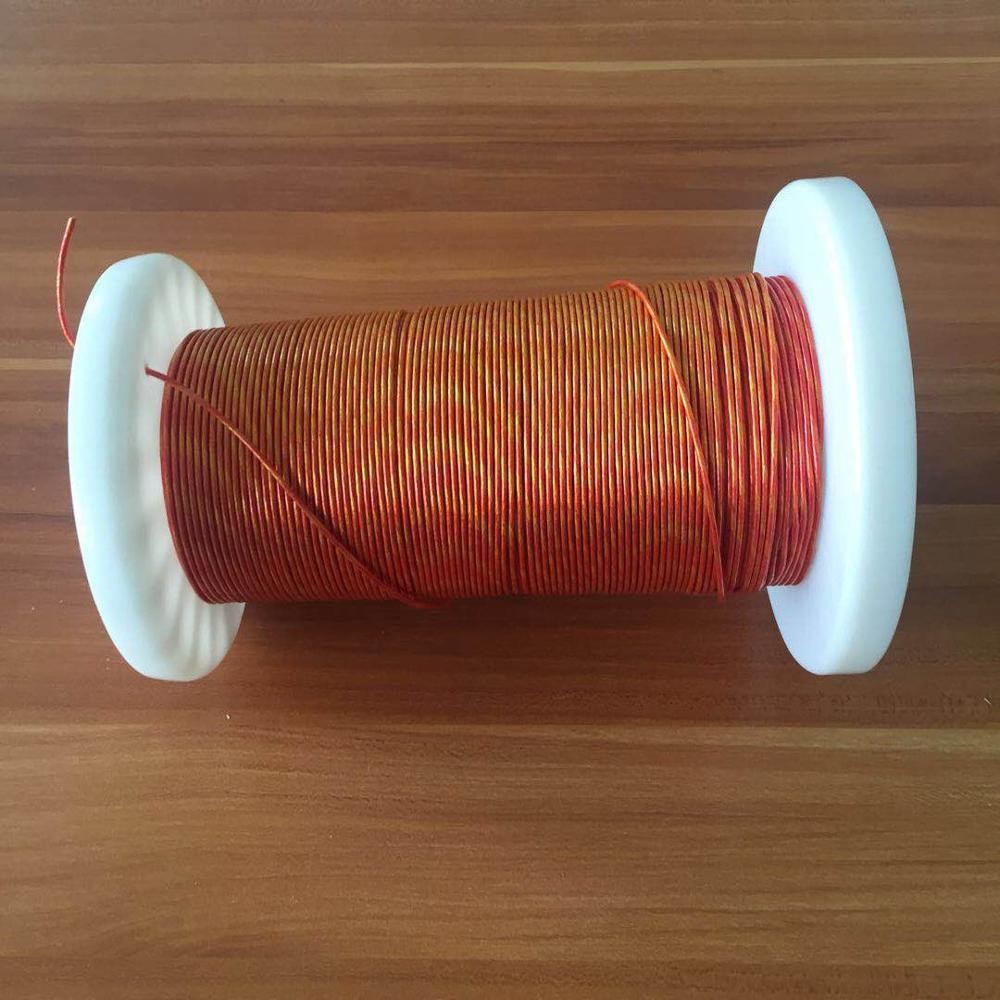

13000V Taped Litz Wire Enameled Copper Stranded Wire
The customized taped litz wire is the perfect solution for those seeking a high-performance, reliable and adaptable conductor.With its usperior voltage resistance, customizable features, and robust construction, this taped litz wire is designed to meet the demands of modern applications. Trust Ruiyuan to provide you with the quality and performance you need to elevate your projects to the next level.
| Outgoing test of stranded wire | Spec: 0.4x120 |
Model: 2UEW-F-PI Tape spec:0.025x20 |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.433-0.439 | 0.424-0.432 |
| Conductor diameter(mm) | 0.40±0.005 | 0.396-0.40 |
| Overall diameter (mm) | Max.6.87 | 6.04-6.64 |
| Pitch(mm) | 130±20 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.001181 | 0.001116 |
| Breakown voltage Mini (V) | 6000 | 13000 |
