| Place of Origin: | China |
|---|---|
| ブランド名: | Rvyuan |
| 証明: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 10kg |
| 価格: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire | 証明: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor: | Copper |
| Insulation: | PI film | Rated Temperature: | 180 |
| Key word: | 0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire | No. of strands: | 120 |

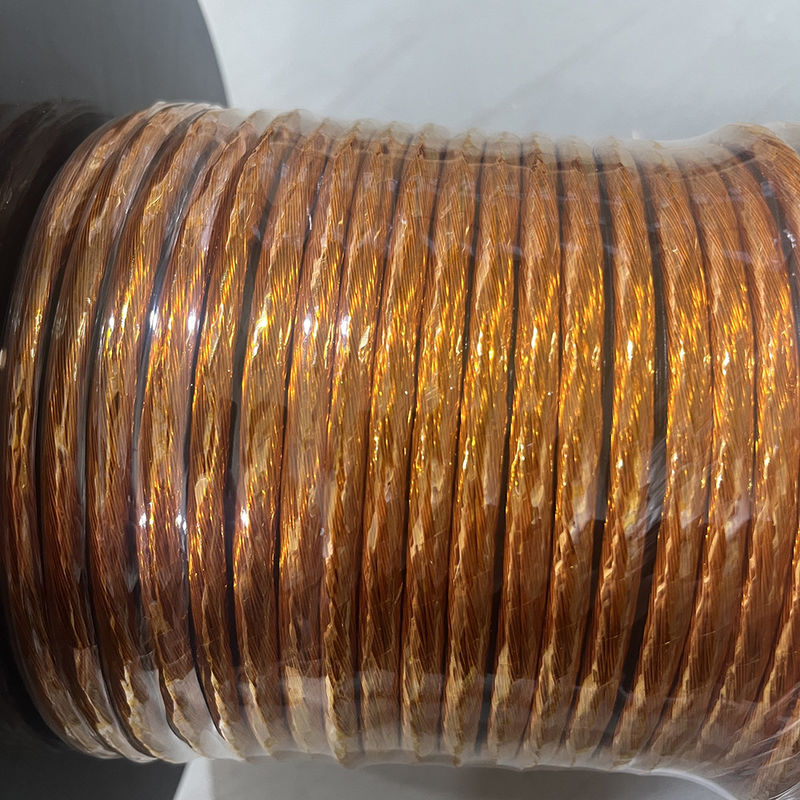

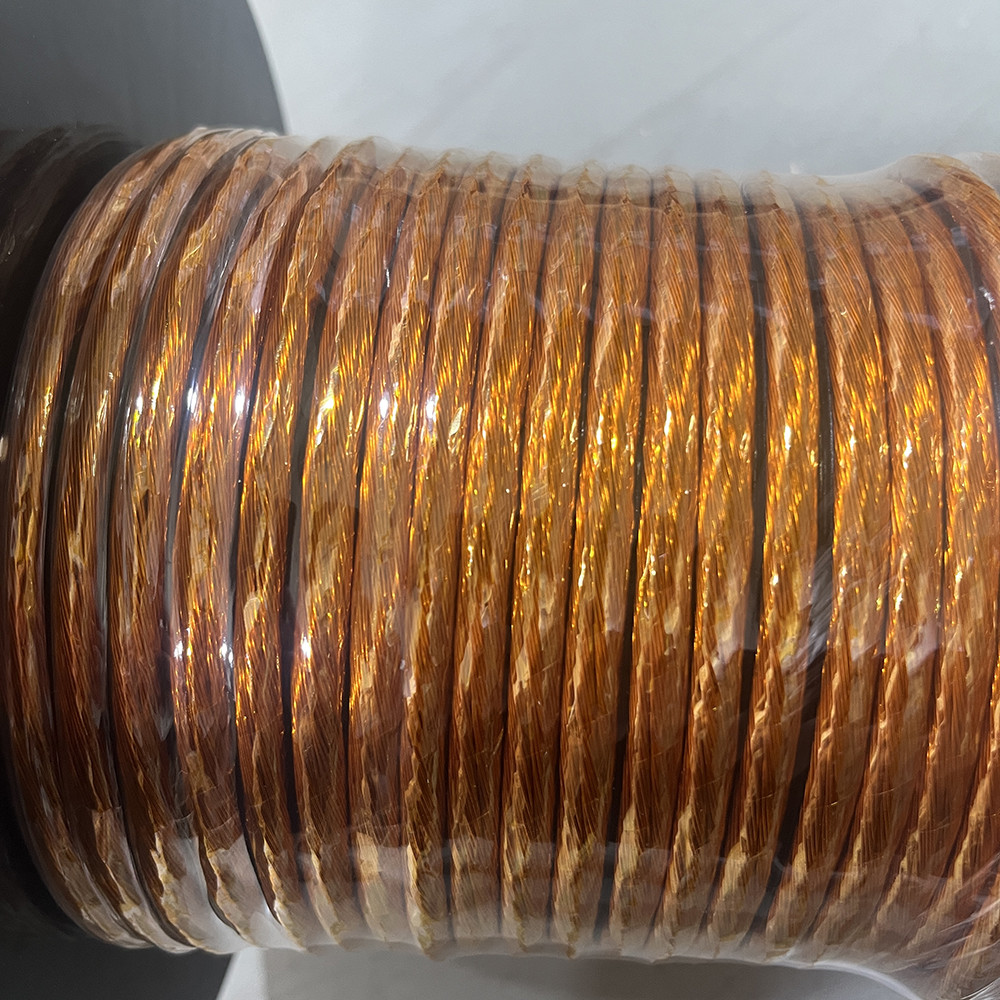

0.03mm- 0.4mm Enameled Copper Twist Wire Taped Litz Wire
Our commitment to quality extends beyond the materials used; we prioritize precision in manufacturing to ensure that every length of our taped litz wire meets stringent industry standards. This attention to detail guarantees that you receive a product that not only performs exceptionally but also stands the test of time.
| Outgoing test of stranded wire | Spec: 0.4x120 |
Model: 2UEW-F-PI Tape spec:0.025x20 |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.433-0.439 | 0.424-0.432 |
| Conductor diameter(mm) | 0.40±0.005 | 0.396-0.40 |
| Overall diameter (mm) | Max.6.87 | 6.04-6.64 |
| Pitch(mm) | 130±20 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.001181 | 0.001116 |
| Breakown voltage Mini (V) | 6000 | 13000 |
